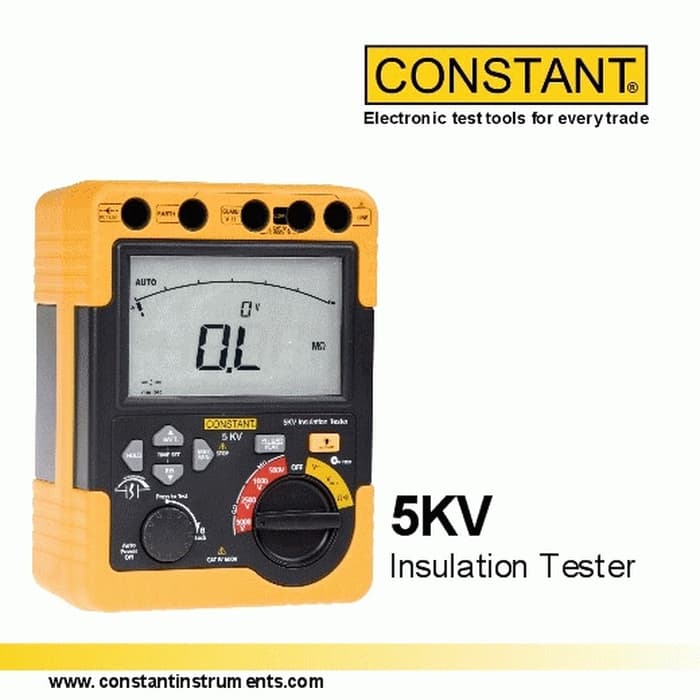

Alat Tester Digital Insulation 5000V Constant 5KV

Rp7.900.000

Spesifikasi Produk Alat Tester Digital Insulation 5000V Constant 5KV :

SKU : 5KV

Size : 200 x 90 x 150 mm

Alat Tester Digital Insulation 5000V Constant 5KV

Dapatkan produk Constant dengan harga terbaik hanya di alatproyek.com / hubungi 021-29986622 s/d 24, 081808090252

SKU: 5KV Category:

Description

Deskripsi Produk Alat Tester Digital Insulation 5000V Constant 5KV :

Alat Tester Digital Insulation 5000V Constant 5KV

Spesifikasi :

Range  500 V
Measuring Range
(Auto Ranging)
0~6.000MΩ
Accuracy ±5%rdg ±3dgt; ±20%(>6GΩ or more)
Short Circuit Current 1.3mA approx
Rated test Current
(At Load Resistance)
1mA-1.2mA0.5MΩ
Opern circuit Voltage 500VDC/+20%-0%
Display  6000 Counts
Power Supply  DC12V : R14 x 8
Relative Humidity  40 ~ 75% ( 40 ~ 60% when insulation test 1G )
Dimensi  198  x 148  x 86 mm
Berat  1438 gr
Accesories  Test leads, Instruction Manual and 120/250V AC adaptor

Alat Tester Digital Insulation 5000V Constant 5KV

Additional information

Weight 3 kg
Brand

Constant
