Deskripsi Produk : Clamp On Sensor Hioki 9669

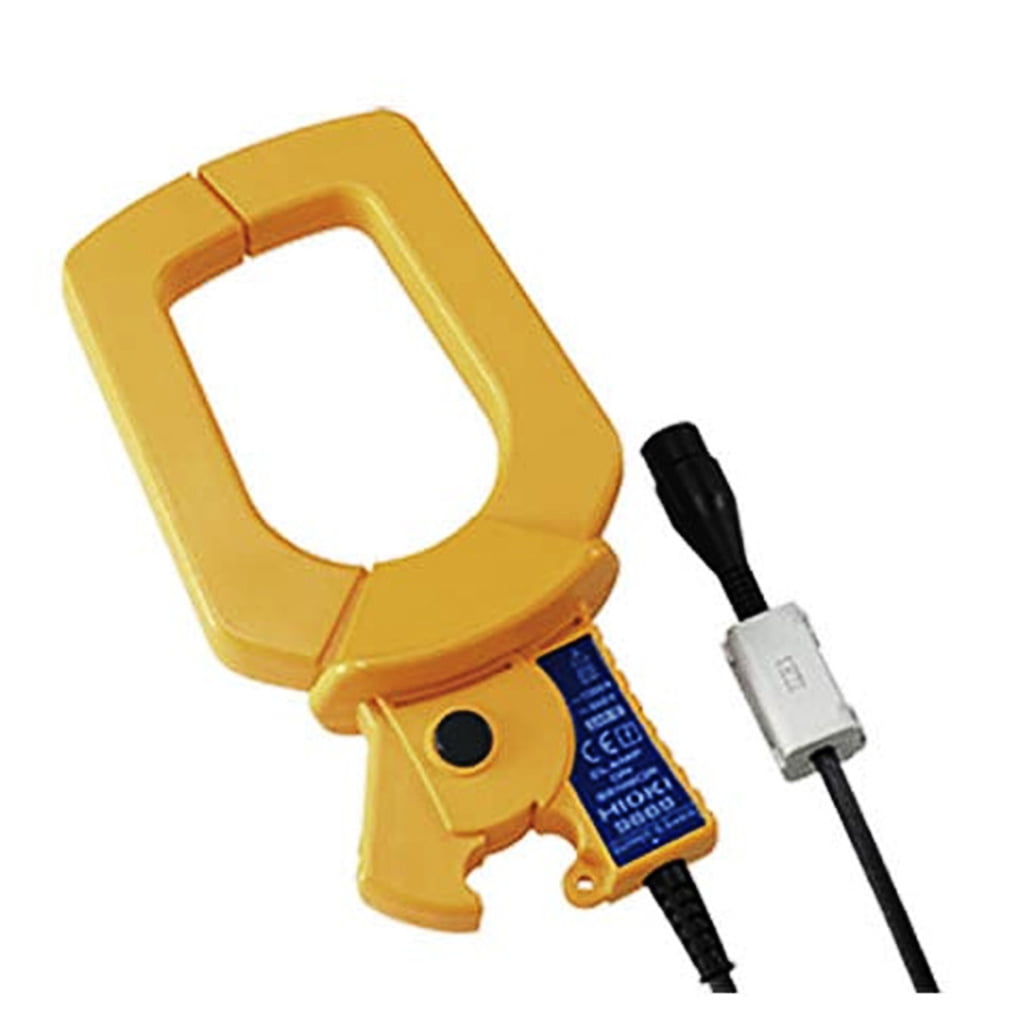

Clamp On Sensor Hioki 9669
Spesifikasi :
Clamp Sensor 1000A (3169, 3196, 3197)
Rated Input Current: 1000 A AC
Rated Output Voltage: 0.5 V AC
Core Jaw Diameter: Ø55mm (2.17 in)
Designed with a safety barrier to protect the user from being in direct contact with live conductors
Completely meets all CE marking requirements.
Rated Input Current: 1000 A AC
Rated Output Voltage: 0.5 V AC
Accuracy: Amplitude: ±1.0% rdg ±0.01 fs., Full scale is the 3196 range value
Phase: ±1° or less
Frequency Characteristics: 66 Hz to 5 kHz (±1% or less from accuracy)
Max. Allowable Input: Continuous 1000 A rms (45 to 66 Hz)
Max Circuit Voltage: 600 V AC rms (insulated wire)
Core Jaw Dia.: Ø55mm (2.17 in), 80mm (3.15 in), 20mm (0.79 in)
Cord Length: 3m (9.84 ft)
