Deskripsi Produk Coating Thickness Gauge 0-1250UM With Print Krisbow 10238109

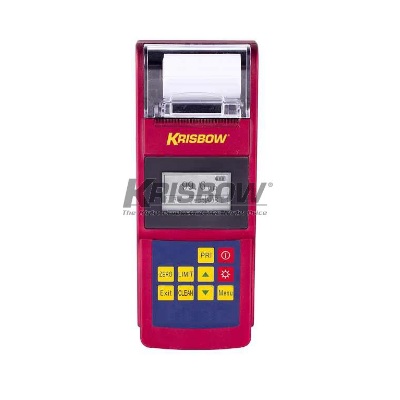

Coating Thickness Gauge 0-1250UM With Print Krisbow 10238109
Fitur :
- High stability and precision
- Two measuring methods: magnetic induction (Fe) and eddy current (Nfe).
- Measuring the thickness off non-magnetic coating on magnetic metal substrate (Fe) or the thickness off non-conductive coating on non-magnetic metal substrate (Nfe)
- Built-in high speed thermal printer
- Storage 495 measurements
- Alarm Limit set
- PC software for analysis (optional)
Spesifikasi :
- Measuring Range: 0 to 1250 μm or 0 to 50 mil
- Resolution: 0.1 μm
- Accuracy: ± (3%H + 1.5) μm, H = the thickness of testing piece
- Min. Thickness of Substrate: 0.5 mm
- Min. Area of Measurement: dia. 7 mm
- Min. Radius of Workpiece: Convex or Concave 3mm
- Memory: 495 measurements
- Power Supply: 2x AA 1.5V alkaline batteries
- Operating Environment: -10 to 40 deg.C, 20 to 90 %RH, No strong magnetic field
- Dimension: 67x31x1250 mm
- Standard Delivery: Main unit, Calibration foil (5 pcs), Fe and Nfe Substate, Fe and Nfe probe, Manual book
