Deskripsi Produk Contact & Infrared Temp Gun Fluke 568 :

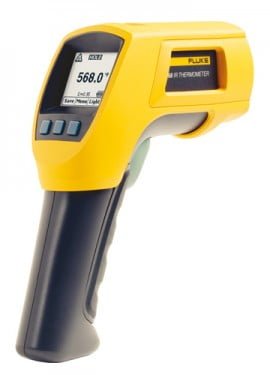

Contact & Infrared Temp Gun Fluke 568
This two-in-one contact and non-contact thermometer can stand up to tough industrial, electrical, and mechanical environments. With a simple, 3-button on-screen menu interface (in 6 languages), this digital laser thermometer make even complex measurements easy. Quickly navigate advanced features to adjust emissivity, start data logging, or turn on and off alarms – with just a few pushes of a button.
Fitur :
- Easily trend and analyze data with included FlukeView® Forms software
- Quickly download stored data with USB connection
- See your data right away without leaving the site, using the USB and your laptop
- Extend your battery life by powering the digital thermometer from your laptop via the USB
Spesifikasi :
| Infrared Temperature Range | -40 to 1472°F (-40 to 800°C) |
| Infrared Accuracy | <32°F (0°C): ±(2.0°F(±1.0°C) + 0.1°/1°C or°F) >32°F (0°C): ±1% or ±2.0°F (±1.0°C), whichever is greater |
| Display Resolution | 0.1°F/0.1°C |
| Infrared Spectral Response | 8µm to 14µm |
| Infrared Response Time | <500m sec |
| Type K Input Thermocouple Range | -454 to 2501°F (-270 to 1372°C) |
| Type K Input Thermocouple Accuracy | -454 to -40°F: ±(2°F + 0.2°/1°F) (-270 to -40°C: ±(1°C + 0.2°/1°C)) -40 to 2501°F: ±1% or 2°F (-40 to 1372°C: ±1% or 1°C), whichever is greater |
| Bead Thermocouple Type-K Range | -40 to 500°F (-40 to 260°C) |
| Bead Thermocouple Type-K Accuracy | ±2.0°F (1.1°C) from 32 to 500°F (0 to 260°C), typically within 2.0°F (1.1°C) from -40 to 32°F (-40 to 0°C) |
| D:S (Distance to Measurement Spot Size) | 50:1 |
| Laser Sighting | Single-point laser <1 mw output Class 2 (II) operation, 630 nm to 670 nm |
| Minimum Spot Size | 0.75″ (19 mm) |
| Emissivity Adjustment | Built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01 |
| Data Storage with Date/Time Stamp | 99 points |
| PC Interface and Cable | USB 2.0 with FlukeView® Forms software |
Contact & Infrared Temp Gun Fluke 568
