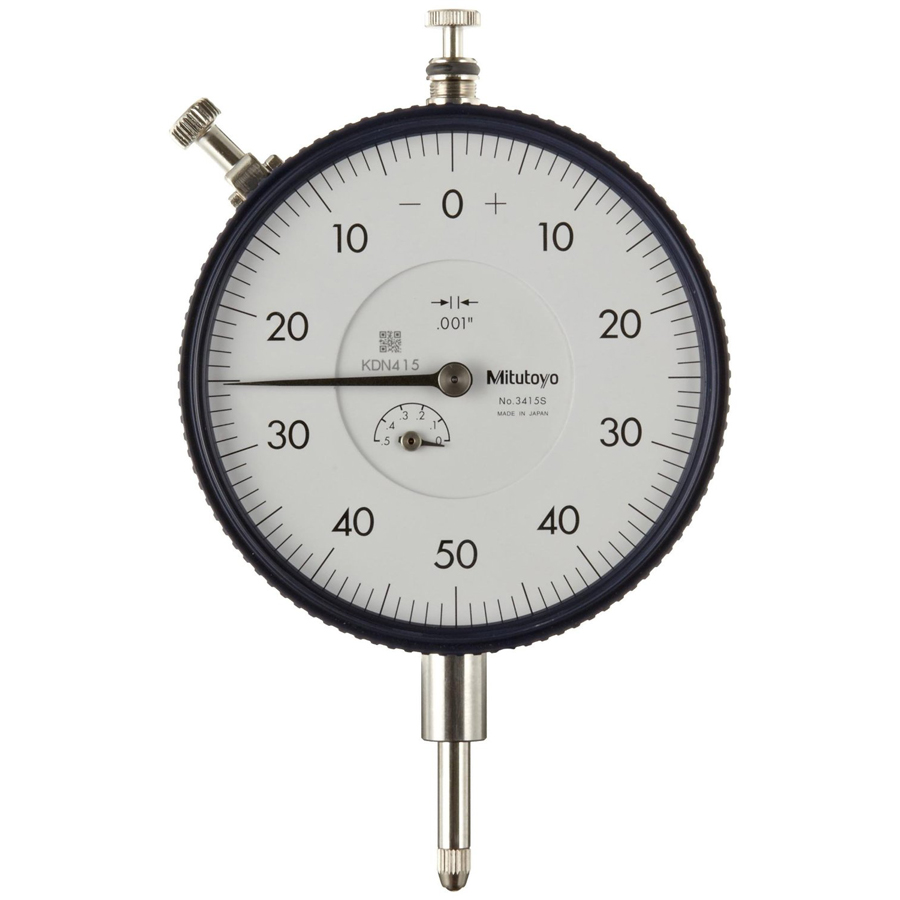

Deskripsi Produk DIAL INDICATOR 0-0.4 0.001IN 3415S MITUTOYO MT0000418
| Description |
DIAL INDICATOR 0-0.4/0.001IN 3415S adalah satu a lat ukur yang dapat mengukur kerataan benda kerja. Dial indicator Mit utoyomemungkinkan kita untuk memeriksa kerataan dari permukaan benda , memeriksa penyimpangan yang kecil pada bidang , memeriksa penyimpang an eksentris, memeriksa kesejajaran permukaan benda, menyetel kesentrisa n benda pada pencekam mesin bubut, dan memeriksa penyimpangan bantalan p ada poros engkol . Dial indicator Mitutoyo ini dengan pembacaan 0 -50-0 dan range pengukuran 0.5 INC sering digunakan di industri, bengk el, laboratorium, atau konstruksi.
|
| Features |
- Standard dial indicator with a 0.375 inches diameter stem, a #4-48 UNF contact point thread mount, and choice of white or black face, for measuring surface variations in fractional inches
- Units displayed i n fractional inches, and has a rotating bezel and limit markers
- Choice of flat or lug back for a variety of mounting options
- Stem design provides long clamping range, no through screw-hole on the frame for dust- and water resistance, and involute curved lifting lever provides smooth movement of spindle and dovetail joint for tool-less connection
- Meets ANSI standards, Japanese Industrial Standard (JIS) B7503-1997, and American Gage Design (AGD) standards for face and thread size, and bezel and stem diameter
|
| Spesification |
- Maximum Measurement: 0-0.5 INC
- System of Measurement: INC
- Material Type: Stainless Steel
- Additional Features: –
- Color: White
- Measurement Accuracy: +/-0.001INC
- Outsi de Diameter: 3.071 INC
- Range: 0-0.5INC
- Resolution: 0.001INC
- Shape: Lug Back
- Size: 0-0.5 INC Range
- St em Outside Diameter: 0.375 INC
- Thread Style: #4-48 UNF
|
DIAL INDICATOR 0-0.4 0.001IN 3415S MITUTOYO MT0000418
