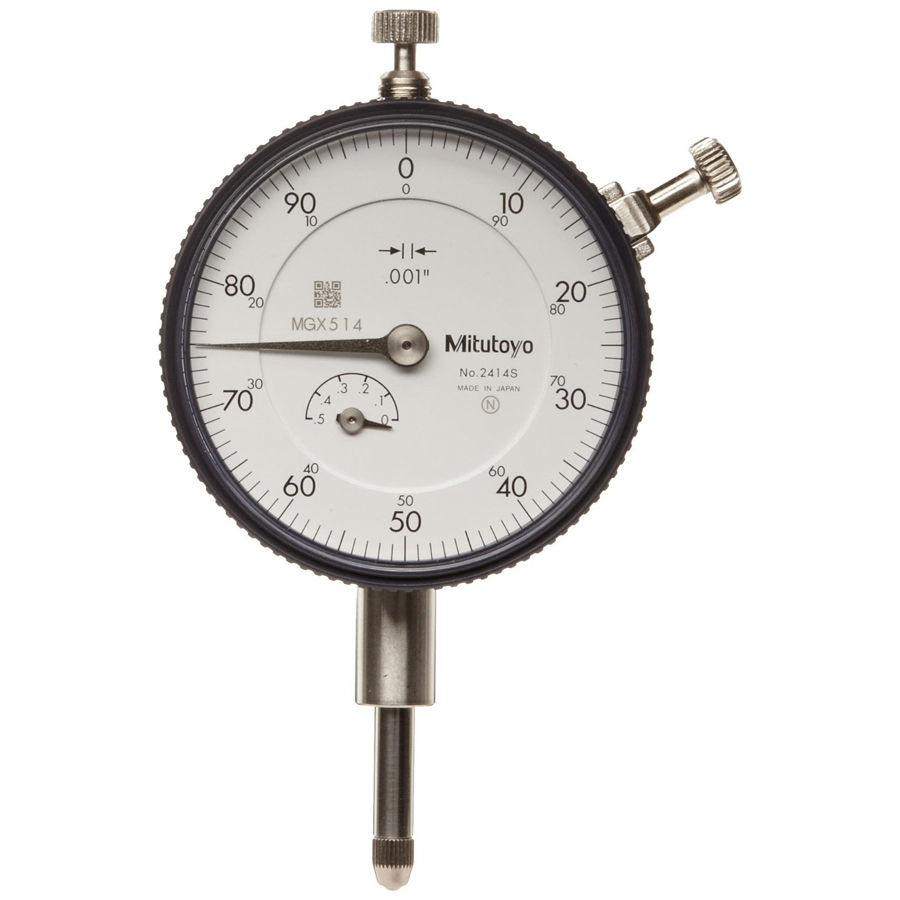

DIAL INDICATOR 0-5/0.001 IN 2414S Mitutoyo 10018173

Description

Spesifikasi Produk DIAL INDICATOR 0-5/0.001 IN 2414S Mitutoyo 10018173

DIAL INDICATOR 0-5/0.001 IN 2414S Mitutoyo 10018173

DIAL INDICATOR 0-5/0.001 IN 2414S adalah satu al at ukur yang dapat mengukur kerataan benda kerja. Dial indicator Mitu toyomemungkinkan kita untuk memeriksa kerataan dari permukaan benda, memeriksa penyimpangan yang kecil pada bidang , memeriksa penyimpanga n eksentris, memeriksa kesejajaran permukaan benda, menyetel kesentrisan benda pada pencekam mesin bubut, dan memeriksa penyimpangan bantalan pa da poros engkol . Dial indicator Mitutoyo tipe waterproof mempuny ai range pengukuran 0-5 INC dan pembacaan 0-100 sering digunakan di in dustri, bengkel, laboratorium, atau konstruksi.

Benefit :

• – Waterproof type dial gages having a bezel with an outside diameterof 57MM. All types come with limit markers and a bezel clamp asstandard.
• – The bezel clamp can be attached to either the right orleft side. These parts can be easily installed and removed withouttools.
• – The stem and spindle are made of highstrengthquench-hardened stainless steel suitable for heavy-duty use.
• – Acarbide contact point is used.
• – Application of a ha rd coating on the surface of the crystal makes the gage highly scratchandchemical-resistant

Features :

• – Standard dial indicator with a 0.375INC diameter stem. a #4-48 UNFcontact point thread mount. and choice of white or black face. formeasuring surface variations in fractional INC
• – Units displayed infractional INC. and has a rotating bezel and limit markers
• – Choice of flat or lug back for a variety of mounting options
• – Stem designprovides long clamping range. no through screw-hole on the fram e fordust- and water resistance. and involute curved lifting lever providessmooth movement of spindle and dovetail joint for tool-lessconnection
• – Meets ANSI standards. Japanese Industrial Standard (JIS)B7503-1997.

Deskripsi :

• – Brand Name : Mitutoyo
• – Part Number : 2414S
• – Maximum Measurement : 0-0.5INC
• – System of Measurement : INC
• – Material Type : StainlessSteel
• – Additional Features –
• – Color : White
• – Display : 0-100
• – Inside Depth : 5.12 INC
• – Item Weight : 0.45pounds
• – Measurement Accuracy : +/-0.001INC
• – Outside Diameter : 2.244INC
• – Range : 0-0.5INC
• – Resolution : 0.001INC
• – Shape : LugBack
• – Stem Outside Diameter : 0.375 INC
