Description

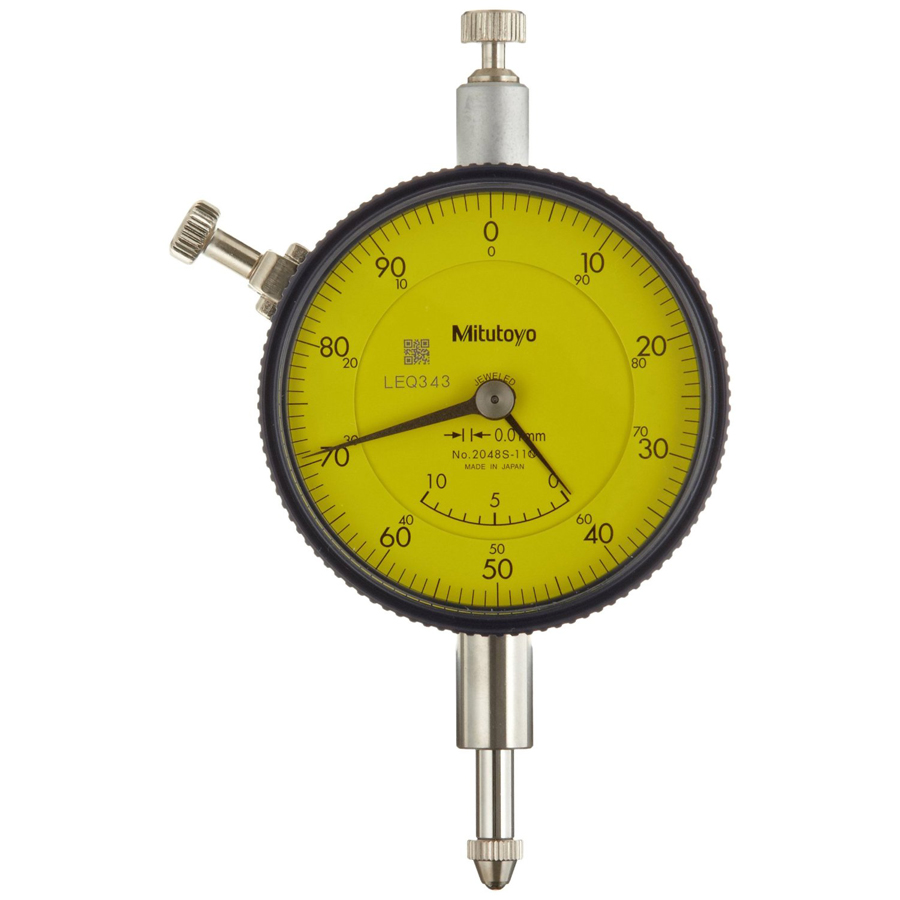

Deskripsi Produk DIAL INDICATOR 10/0.01MM 2048S-11 MITUTOYO 10033944 :
| Description |
DIAL INDICATOR 10/0.01MM 2048S-11 adalah satu al at ukur yang dapat mengukur kerataan benda kerja. Dial indicator Mitu toyomemungkinkan kita untuk memeriksa kerataan dari permukaan benda, memeriksa penyimpangan yang kecil pada bidang , memeriksa penyimpanga n eksentris, memeriksa kesejajaran permukaan benda, menyetel kesentrisan benda pada pencekam mesin bubut, dan memeriksa penyimpangan bantalan pa da poros engkol . Dial indicator Mitutoyo standard mempunyai rang e pengukuran 0-10 MM sering digunakan di industri, bengkel, laboratori um, atau konstruksi.
|
| Features |
- The stem spindle is made of high strength quench hardened stainlesssteel which resists strenuous use also carbide contact point isused
- The grand gear uses stainless steel that is resistant to wearand deformation, application of a hard coating on the surface of thecrystal makes the gauge highly scratch and chemical resistant
- Stemdiameter 3/8INC, 4-48 UNF (Unified Fine Thread) thre ad size, yellow dial face and Measuring force is 1.4N or less
- Jewel ed bearing, withcoaxial revolution counter; The hand position can be adjustedindependently of the vertical movement of the spindle by rotating thetop knob
- Provided with inspection certificate
|
| Spesification |
- Part Number 2048S-11
- Style Name 0-100
- Maximum Measurement0-10MM
- Additional Features Jeweled Bearing, RevolutionCounter
- Color Yellow
- Display 0-100
- Measureme nt Accuracy+/-0.013MM
- Outside Diameter 57 MM
- Range 0-10MM
- Resolution0.01MM
- Shape Lug Back
- Size 0-10M M Range
- Brand NameMitutoyo
- System of Measurement Metric
- Material Type StainlessSteel
- Stem Outside Diameter 9.525 MM
|
DIAL INDICATOR 10/0.01MM 2048S-11 MITUTOYO 10033944
