Description

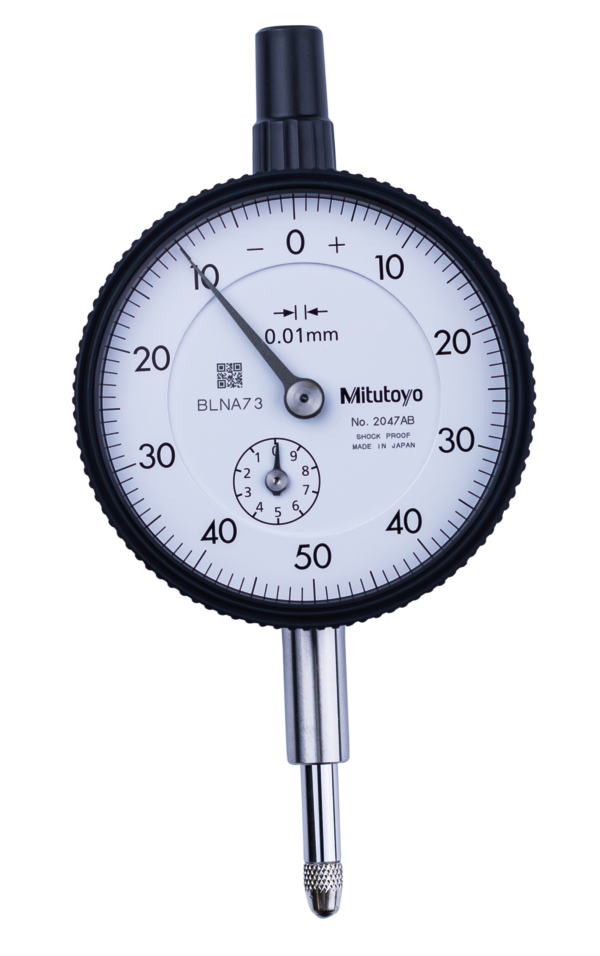

Jual Dial Indicator 10/0.1MMM Mitutoyo 2047AB
Benefit :
- Standard 0.001MM and 0.005MM graduation dial indicators having a bezel with an outside diameter of Dia.57MM. All types come with limit markers and a bezel clamp.
- The outer clamp and lifting lever(optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
- Secure adhesion between the bezel and crystal as well as the use of an O-ring preventswater or oil penetration.
- The spindle is made of high-strength quench hardened stainless steel which resists arduous use.
- A carbide contact point is used.
- A special alloy is used for the sectorgears to provide improved wear resistance.
- The indicator uses jeweled bearings, providing excellent indication sensitivity and durability.
- Application of a hard coating on the surface of the crystal makes the gauge highly scratch- and chemical-resistant.
Features
- The stem spindle is made of high strength quench hardened stainless steel which resists strenuous use also carbide contact point isused
- The grand gear uses stainless steel that is resistant to wear and deformation, application of a hard coating on the surface of the crystal makes the gauge highly scratch and chemical resistant
- Stem diameter 8MM, M2.5-0.45 thread size and Measuring force is 1.4N or less
- Provided with inspection certificate
Deskripsi :
- Maximum Measurement : 0-10MM
- Color : White
- Display : 0-50-0
- Measurement Accuracy : +/-0.013MM
- Outside Diameter : 57MM
- Range 0-10MM
- Resolution : 0.01MM
- Shape Flat Back
- Size : 0-10MM Range
- Brand Name : Mitutoyo
- System of Measurement : Metric
- Material Type : Stainless Steel
- Stem Outside Diameter : 8MM
- Thread Style : M2.5X0.45
- Type : Standard
