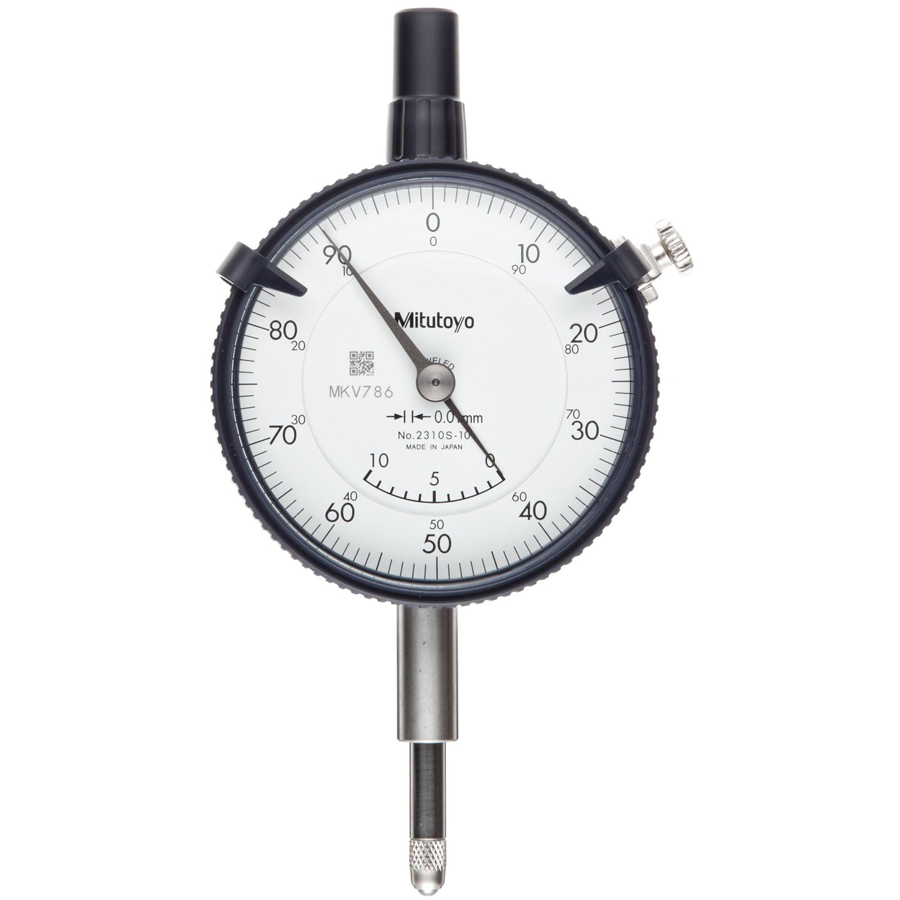

DIAL INDICATOR 20 0.01MM 2320S-10 MITUTOYO 10028453

DIAL INDICATOR 20/0.01MM 2320S-10 adalah satu al at ukur yang dapat mengukur kerataan benda kerja. Dial indicator Mitu toyomemungkinkan kita untuk memeriksa kerataan dari permukaan benda, memeriksa penyimpangan yang kecil pada bidang , memeriksa penyimpanga n eksentris, memeriksa kesejajaran permukaan benda, menyetel kesentrisan benda pada pencekam mesin bubut, dan memeriksa penyimpangan bantalan pa da poros engkol . Dial indicator Mitutoyo tipe Long Stroke dengan pembacaan 0-100 dan range pengukuran 0-20 MM sering digunakan di indu stri, bengkel, laboratorium, atau konstruksi.

• The stem spindle is made of high strength quench hardened stainlesssteel which resists strenuous use also carbide contact point isused
• The grand gear uses stainless steel that is resistant to wearand deformation, application of a hard coating on the surface of thecrystal makes the gauge highly scratch and chemical resistant
• Stemdiameter 8MM, M2.5-0.45 thread size and measuring force is 2.0N orless
• Jeweled bearing, with coaxial revolution counter, with damperat lowest rest point
• Provided with inspectio n certificate

• Part Number 2320S-10
• Style Name 0-100
• Maximum Measurement0-20MM
• Additional Features Jeweled Bearing, RevolutionCounter
• Color White
• Display 0-100
• Measuremen t Accuracy+/-0.02MM
• Outside Diameter 57 MM
• Range 0-20MM
• Resolution0.01MM
• Shape Lug Back
• Size 0-20M M Range
• Brand NameMitutoyo
• System of Measurement Metric
• Material Type StainlessSteel
• Stem Outside Diameter 8 MM
• Thread Style M2.5X0.45
