Description

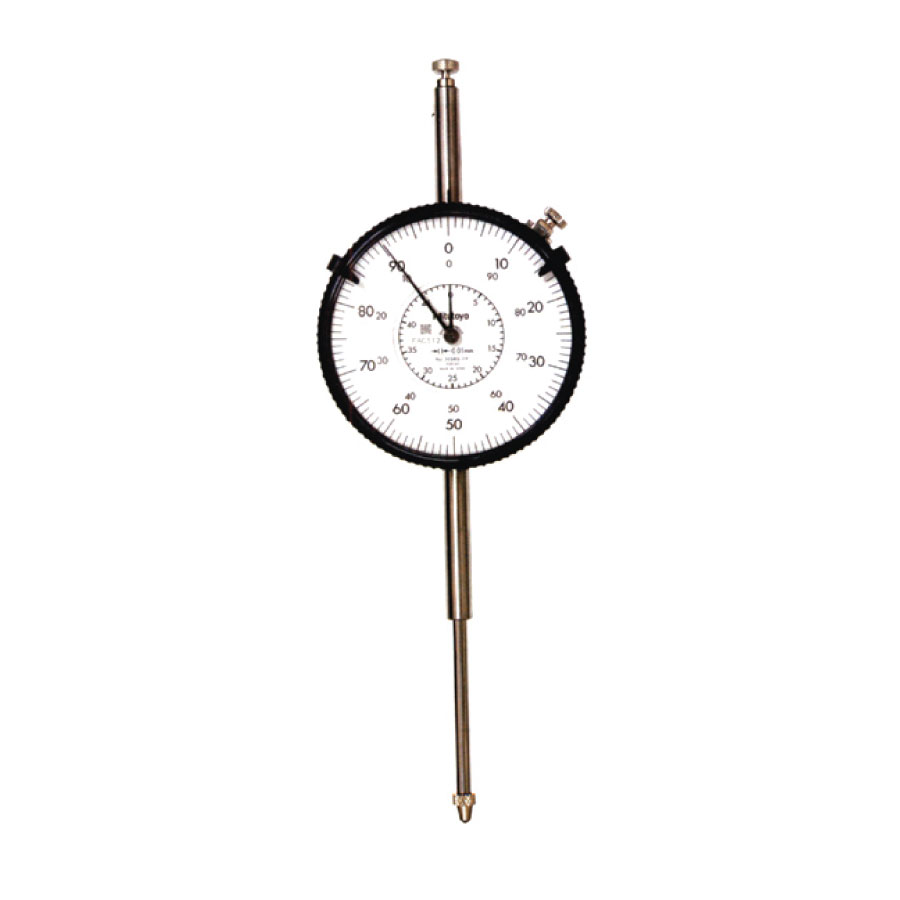

Jual Dial Indicator 20/0.01MM Mitutoyo 3050A adalah satu alat ukur yang dapat mengukur kerataan benda kerja. Dial indicator Mitutoyo memungkinkan kita untuk memeriksa kerataan dari permukaan benda, memeriksa penyimpangan yang kecil pada bidang, memeriksa penyimpangan eksentris, memeriksa kesejajaran permukaan benda, menyetel kesentrisan benda pada pencekam mesin bubut, dan memeriksa penyimpangan bantalan pada poros engkol. Dial indicator Mitutoyo tipe Long Stroke mempunyai range pengukuran 0-20 MM sering digunakan di industri, bengkel, laboratorium, atau konstruksi.
Benefit Dial Indicator 20/0.01MM Mitutoyo 3050A:
- Long stroke dial indicators with a Dia.57MM outer frame. All the models are equipped with limit markers and a bezel clamp as standard.
- An O-ring is employed to ensure air-tightness bet ween the outer frame and the crystal case to prevent water or oil penetration.
- Both the stem and the spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
- A carbide contact point is employed.
- The grand gear is made of stainless steel with high resistance to wear and deformation.
- Application of a hard coating on the surf ace of the crystal makes the gauge highly scratch- and chemical-resistant.
- The bezel clamp and lifting lever* (optional) can be attac hed to either the right or left side. These parts can be easily install ed and removed without any tools.
- Stem diameter 8MM, M2.5-0.45 thread size
- Measuring force: 2.0 N or less
- With damper at lowest rest point
- Provided with inspection certificate
- All types come with limit pins and an outer frame clamp as
Spesifikasi detail:
- Material : Stainless Steel
- Measuring_force : 2.0 N
- Part Number : 3050A
- Style Name : 0-100
- Maximum Measurement : 0-20MM
- Additional Features : –
- Color : White
- Display : 0-100
- EAN : 4946368524696
- Measurement Accuracy : +/-0.02MM
- Outside Diameter : 78 MM
- Range : 0-20MM
- Resolution : 0.01MM
- Shape : Lug Back
- Size : 0-20MM Range
- Type : Long Stroke
