Deskripsi Produk DIAL INDICATOR 20MM/0.01MM 2050S-19 MITUTOYO MT0004774

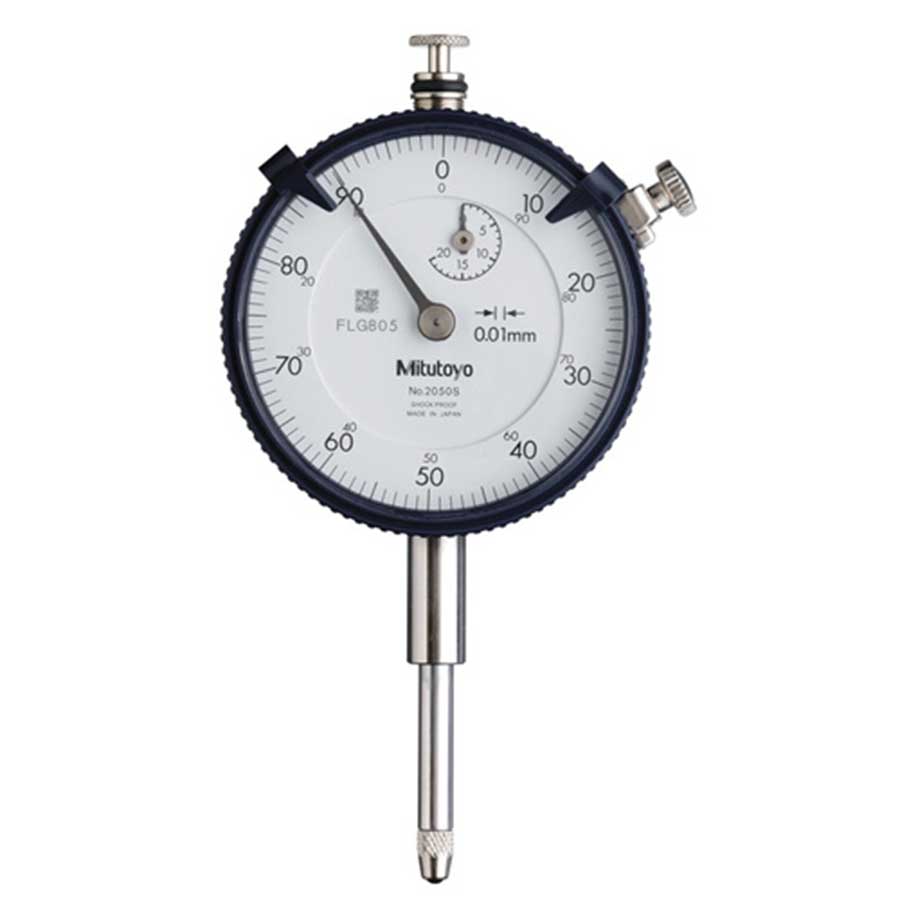

DIAL INDICATOR 20MM/0.01MM 2050S-19 MITUTOYO MT0004774
DIAL INDICATOR 20MM/0.01MM 2050S-19 adalah satu alat ukur yang dapat mengukur kerataan benda kerja. Dial indicator Mi tutoyomemungkinkan kita untuk memeriksa kerataan dari permukaan benda, memeriksa penyimpangan yang kecil pada bidang , memeriksa penyimpan gan eksentris, memeriksa kesejajaran permukaan benda, menyetel kesentris an benda pada pencekam mesin bubut, dan memeriksa penyimpangan bantalan pada poros engkol . Dial indicator Mitutoyo ini dengan pembacaan 0-100 dan range pengukuran 20 MM sering digunakan di industri, bengkel , laboratorium, atau konstruksi.
Benefit
* The stem spindle is made of high-strength quench-hardened stainless steel which resists strenuous use.
* A carbide contact point is used.
* The grand gear uses stainless steel that is resistant to wear and deformation.
* Application of a hard coating on the surf ace of the crystal makes the gauge highly scratch and chemical resistant
Features
* Standard 0.01mm graduation dial gauges having an outer frame with an outside diameter of 57mm. All types come with limit pins and an outer frame clamp as standard.
* The outer clamp and lifting lever (optional) can be attached to either the right or left side. These part s can be easily installed and removed without tools.
* Secured adhesion between the outer frame and crystal as well as the use of an O-ring ensure countermeasures against water and oil permeation via the front face.
Deskripsi :
* Material : Stainless Steel
* Range 20 MM
* Repeatability 4 Micrometer
* Accuracy: 20mm/1mm (Range/Rev)
* Dial Reading : 0-1 00
* With lug
* Overall Accuracy: 0.020mm
* Measuring Force: 2.0N or less Force
* Thread style: M 2.5 X 0.45
* Type : Dial Indicator
* Dimension_unit : 192 X 57 X 98 MM
