Description

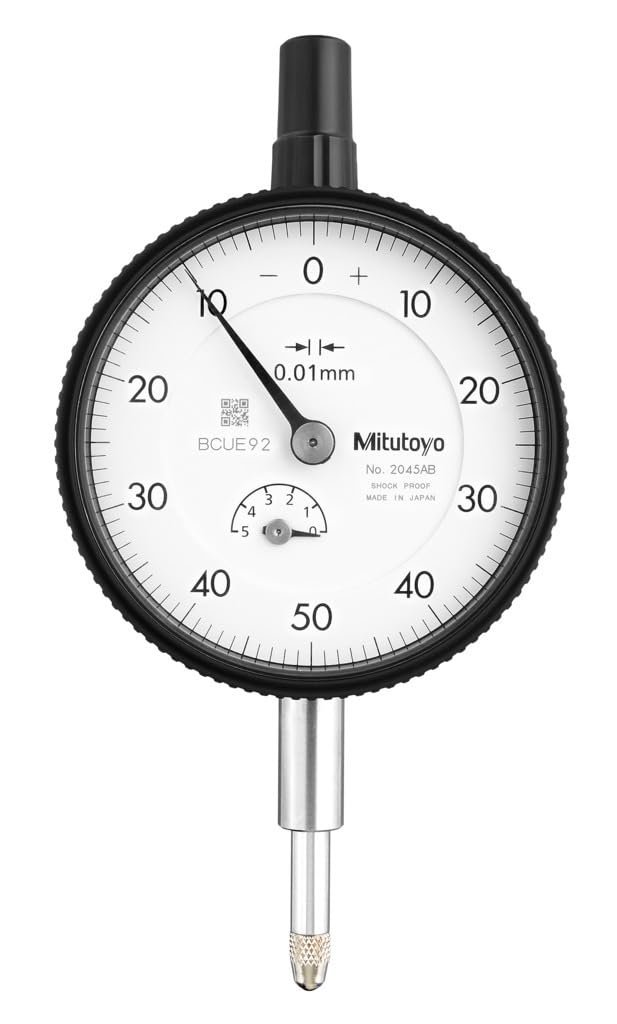

Jual Dial Indicator 5/0.01MM Flat Mitutoyo 2045AB
Benefit:
- Standard 0.001MM and 0.005MM graduation dial indicators having abezel with an outside diameter of Dia.57MM. All types come with limitmarkers and a bezel clamp.
- The outer clamp and lifting lever(optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
- Secure adhesion between the bezel and crystal as well as the use of an O-ring preventswater or oil penetration.
- The spindle is made of high-strengthquenchhardened stainless steel which resists arduous use.
- A carbide contact point is used.
- A special alloy is used for the sectorgears to provide improved wear resistance.
- The indicator usesjeweled bearings, providing excellent indication sensitivityand durability.
- Application of a hard coating on the surface of the crystal makes the gauge highly scratch- and chemical-resistant.
Features:
- The stem spindle is made of high strength quench hardened stainless steel which resists strenuous use also carbide contact point isused
- The grand gear uses stainless steel that is resistant to wearand deformation, application of a hard coating on the surface of thecrystal makes the gauge highly scratch and chemical resistant
- Stem diameter 8MM, M2.5-0.45 thread size and measuring force is 1.4N orless
- Reverse reading
- Provided with inspection certificate
Description:
- Part Number : 2045AB
- Style Name : 0-50-0
- Maximum Measurement : 0-5MM
- Additional Features : Reverse Reading
- Color : White
- Display : 0-50-0
- EAN : 494636850186 4
- Measurement Accuracy : +/-0.012MM
- Outside Diameter : 57 MM
- Range : 0-5MM
- Resolution : 0.01MM
- Shape : Flat Back
- Size : 0-5MM Range
- Type : Standard
