Description

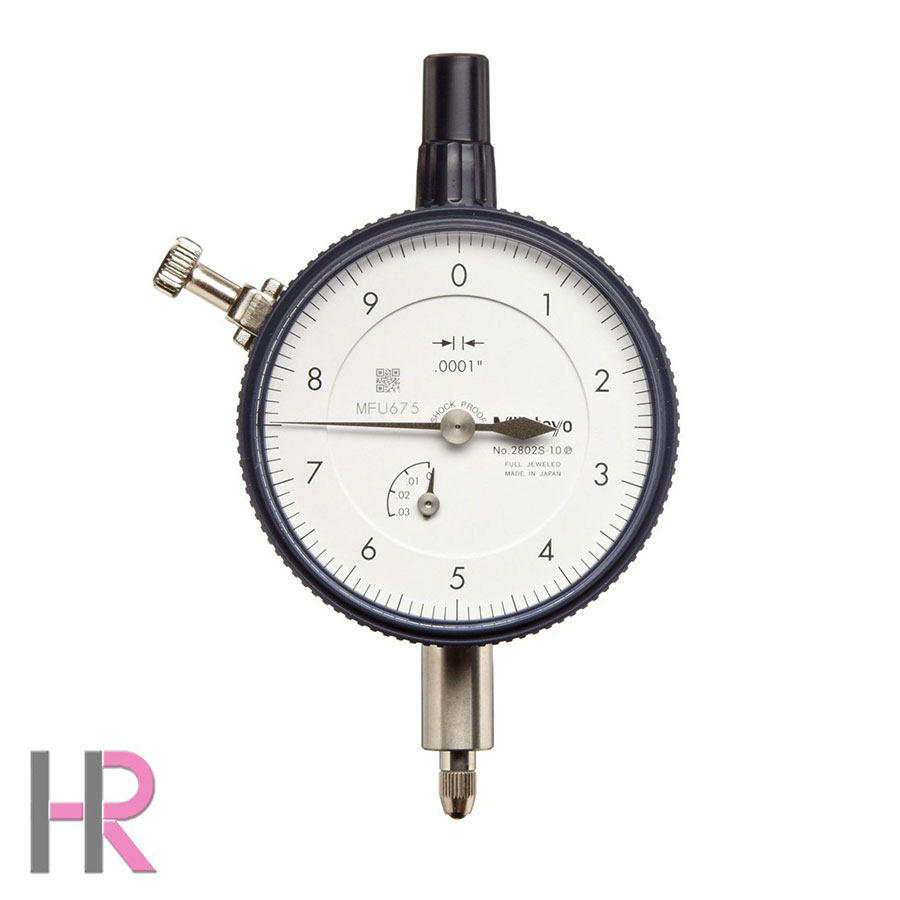

Jual Dial Indicator Mitutoyo 2802A-10, barang dijamin asli dan bergaransi resmi hanya di alatproyek.
Benefit Dial Indicator Mitutoyo 2802A-10:
- Waterproof type dial gages having a bezel with an outside diameterof 57MM. All types come with limit markers and a bezel clamp as standard.
- The bezel clamp can be attached to either the right or left side. These parts can be easily installed and removed without tools.
- The stem and spindle are made of high strength quench-hardened stainless steel suitable for heavy-duty use.
- A carbide contact point is used.
- Application of a hard coating on the surface of the crystal makes the gage highly scratch and chemical-resistant.
Features :
- Standard dial indicator with a 0.375INC diameter stem, a #4-48 UNF
- contact point thread mount, and choice of white or black face, for measuring surface variations in fractional INC
- Units displayed in fractional INC, and has a rotating bezel and limit markers Choice of flat or lug back for a variety of mounting options Stem design provides long clamping range, no through screw-hole on the frame for dust- and water resistance, and involute curved lifting lever provides smooth movement of spindle and dove tail joint for tool-less connection Meets ANSI standards, Japanese Industrial Standard (JIS) B7503-1997
Description :
- Part Number : 2802A-10
- Style Name : 0-10
- Maximum Measurement : 0-0.025INC
- System of Measurement : INC
- Material Type : Stainless Steel
- Additional Features : Shockproof, Jeweled Bearing
- Color : White
- Display : 0-10
- Measurement Accuracy : +/-0.0001INC Outside Diameter 2.244INC
- Range : 0-0.025INC
- Resolution : 0.0001INC
- Shape LugBack
- Size : 0-0.025INC Range
- Stem Outside Diameter : 0.375INC
- Thread Style : #4-48 UNF
- Type : Waterproof
- Dimension_unit : 128 X 58 X 82 MM
