Description

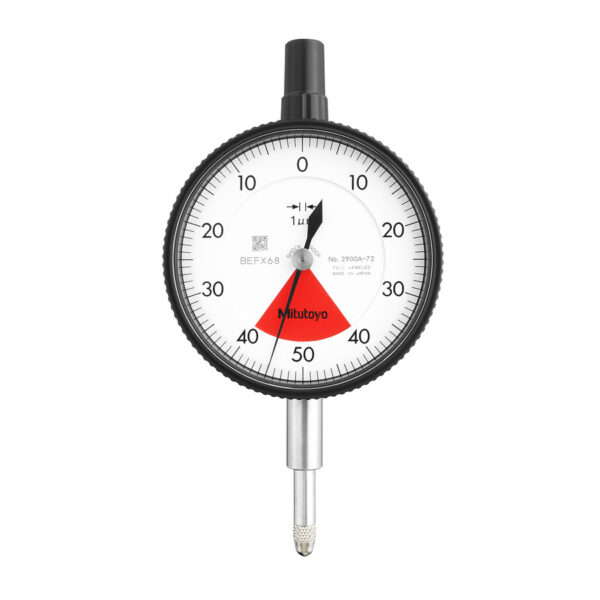

Dial Indicator Mitutoyo 2900A-72 adalah satu alat ukur yang dapat mengukur kerataan benda kerja. Dial indicator Mitutoyo memungkinkan kita untuk memeriksa kerataan dari permukaan benda, memeriksa penyimpangan yang kecil pada bidang, memeriksa penyimpangan eksentris, memeriksa kesejajaran permukaan benda, menyetel kesentrisan benda pada pencekam mesin bubut, dan memeriksa penyimpangan bantalan pada poros engkol . Dial indicator Mitutoyo ini cocok untuk perbandingan pengukuran Jig dan Fixture. Dial indicator Mitutoyo tipe One Revolution mempunyai range pengukuran 0-0.08 MM sering digunakan di industri, bengkel, laboratorium, atau konstruksi
Benefit
- Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact.
- This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions.
- The dead zone in red indicates “accuracy not guaranteed”.
Features
- A carbide contact point is used
- Come with limit pins and an outer frame clamp as standard
- Shockproof, dust proof and jeweled bearing
- Stem diameter 8MM, M2.5-0.45 thread size
Deskripsi:
- Material : Stainless Steel
- Overall_accuracy : +/- 0.003 MM
- Range : 0-0.08 MM
- Part Number : 2900A-72
- Style Name : 40-0-40
- Maximum Measurement : 0-0.08MM
- Additional Features : Shockproof, Dustproof, Jeweled Bearing
- Color : White
- Display : 40-0-40
- Measurement Accuracy : +/-0.003MM
- Outside Diameter : 57 MM
- Range : 0-0.08MM
- Resolution : 0.001MM
- Shape : Lug Back
- Brand Name : Mitutoyo
- System of Measurement : Metric
- Material Type : Stainless Steel
- Stem Outside Diameter : 8 MM
- Thread Style : M2.5X0.45
- Type : One Revolution
