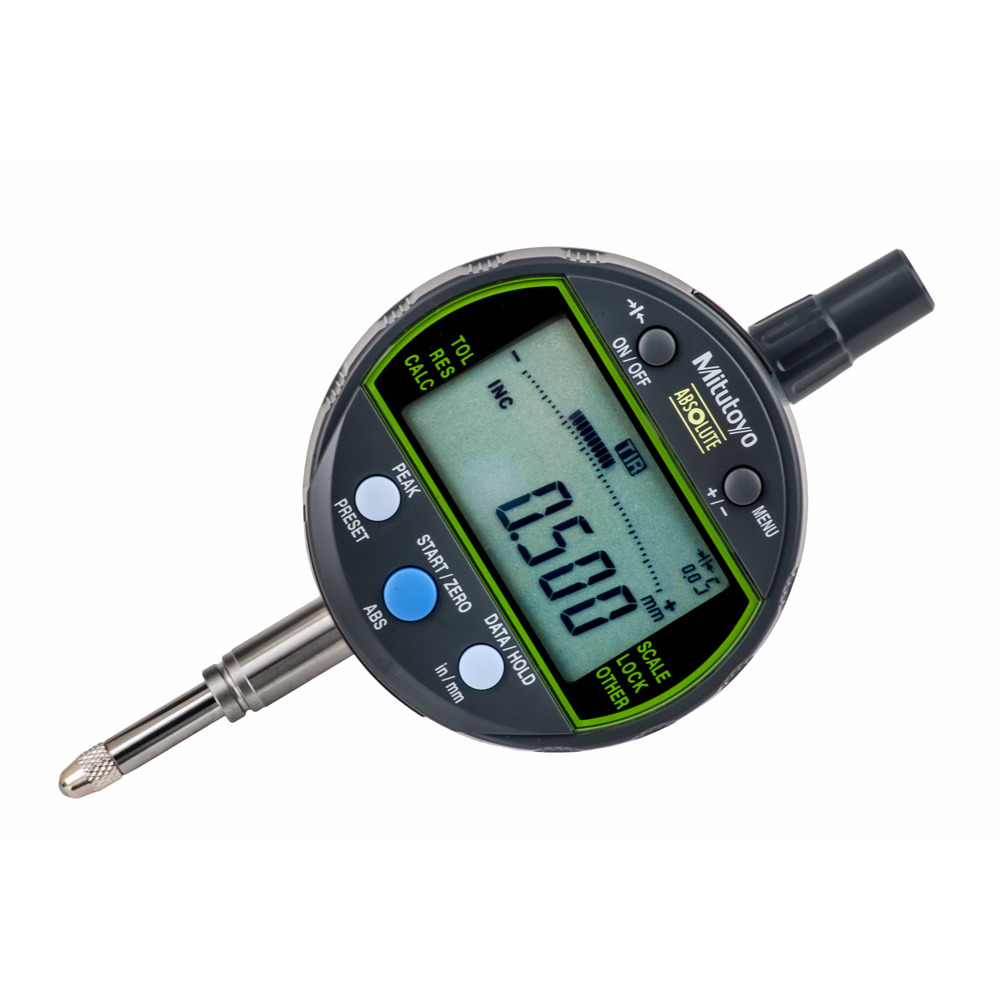

Deskripsi Produk DIG INDICATOR PEAK VALUE HOLD 543-301 MITUTOYO 10084291 —
DIG INDICATOR PEAK VALUE HOLD 543-301 MITUTOYO 10084291 —
Features :
- Parametere setting software makes it even easy to set all available parameters.
- The maximum, minimum or run out value can be displayed during measurement.
- Go/no go judgement is performed by setting the upper and lower tolerance for maximum, minimum or run out values.
- High speed sampling ratio of 50 times/s
Specification :
- Range : 0.5 inch/12.7 mm
- Resolution : 0.00005-0.0005 inch/0.001-0.01 mm
- Display : LCD
- Length Standard : Absolute electrostatic capacitance type linear encoder
- Max. response speed : Unlimited
- Measuring Force : 1.5N or less
- Battery : CR2032 (1pc), 05SAA217
- Battery life : Approx. 12 months under normal use
- IP Rating : Equivalent to IP 42
DIG INDICATOR PEAK VALUE HOLD 543-301 MITUTOYO 10084291 —
