DIG PROTACTOR PR03600 950-318 MITUTOYO MT0005518

Description

Deskripsi Produk DIG PROTACTOR PR03600 950-318 MITUTOYO MT0005518

DIG PROTACTOR PR03600 950-318 MITUTOYO MT0005518

Benefit

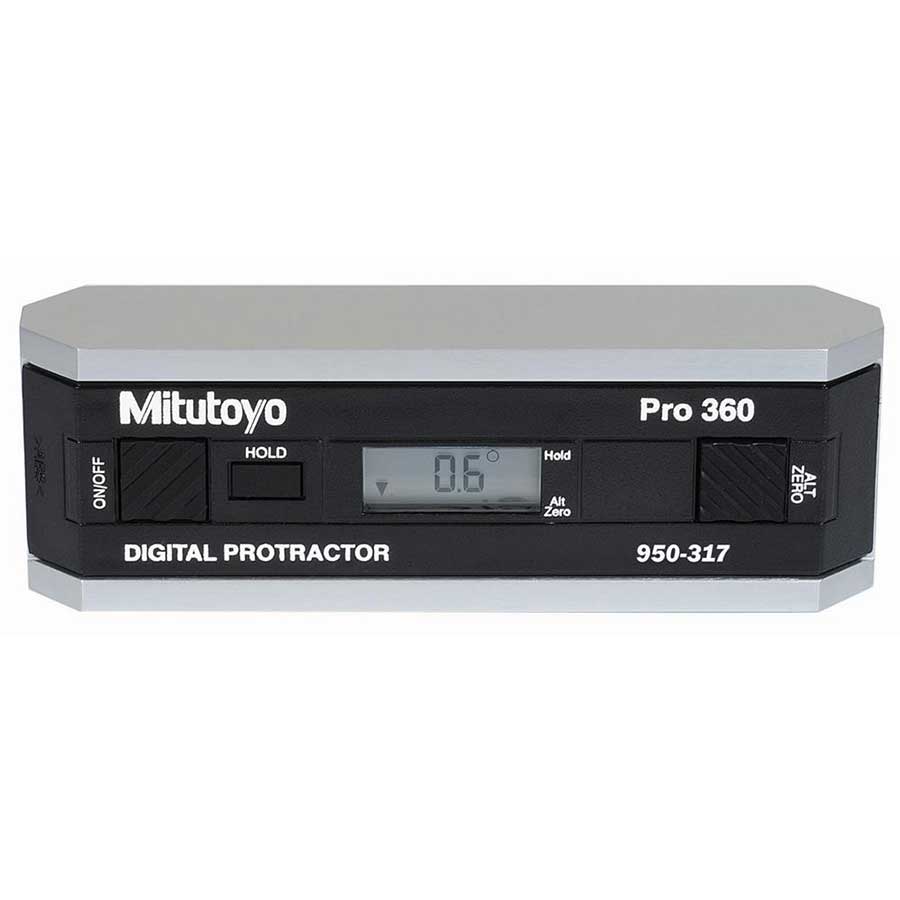

* These Digital Protractors present inclination values on an easy-to-read liquid crystal display.
* The measurements are generated by an electronic gravity sensor and processed by the latest low-power electronic circuit technology.

Features
* Full 360 Deg. range (90 Deg. x 4).
* Machined aluminum frame.
* Alternate reference (zero).
* Reading hold.
* Simple calibration requiring no special fixtures.
* Display remains up right to view at all angles.(950-317, Pro 360 Model).
* RS232C outp ut. (950-318 Pro 3600 Model).

Deskripsi :
* Accuracy: 0.05 Deg. (0 Deg. to 10 Deg.), 0.1 Deg. (80 Deg. to 90 Deg.), 0.2 Deg. (10 Deg. to 80 Deg.)
* Battery Life: 500 Hrs. Standard 9-Volt Battery
* Cross Axis Error: Minimal
* Output: RS-232C
* Compatible Repeatability: +/- 0.05 Deg.
* Resolution: 0.01 Deg. (0 Deg. to 9.99 Deg.), 0.1 Deg. (10 Deg. to 90 Deg.) Deg.
* Storage Temperature: -20-65 Deg.C -4-149 Deg.F
* Operating Temperature: -5-50 Deg.C 23-122 Deg.F
* Type : Digital Protactor
* Dimension_unit : 208 X 135 X 56 MM

DIG PROTACTOR PR03600 950-318 MITUTOYO MT0005518
