Deskripsi Produk : Digital Multimeter Hioki DT4281

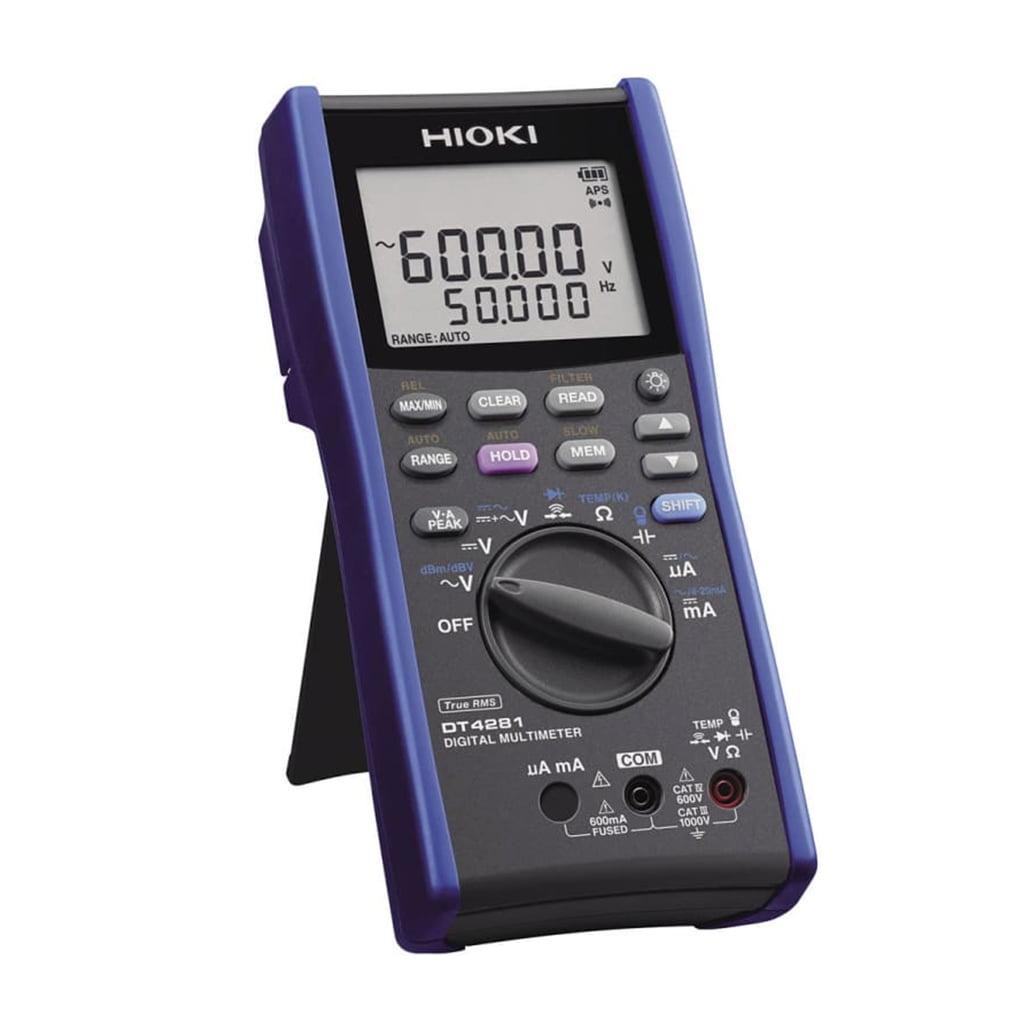

Digital Multimeter Hioki DT4281
Spesifikasi :
DC voltage 60.000 mV to 1000.0 V, 6 ranges, Basic accuracy: 0.025 % rdg. 2 dgt.
AC Voltage* 60.000 mV to 1000.0 V, 6 ranges, Frequency characteristics: 20 Hz – 100 kHz
Basic accuracy 45 – 65 Hz : 0.2 % rdg. 25 dgt. (True RMS, crest factor 3)
DC + AC Voltage* 6.0000 V to 1000.0 V, 4 ranges, Frequency characteristics: 20 Hz – 100 kHz
Basic accuracy 45 – 65 Hz : 0.3 % rdg. 30 dgt. (True RMS, crest factor 3)
Resistance 60.000 to 600.0 M, 8 ranges, Basic accuracy: 0.03 % rdg. 2 dgt.
DC current 600.00 A to 600.00 mA, 4 ranges
Basic accuracy: 0.05 % rdg. 5 dgt.
AC Current* 600.00 A to 600.00 mA, 4 ranges
Basic accuracy 45 – 65 Hz : 0.6 % rdg. 5 dgt. (True RMS, crest factor 3)
Frequency characteristics: 20 Hz – 20 kHz (at 600 A to 600 mA range)
AC Current* (use with Clamp on probes) 10.00 A to 1000 A, 7 ranges
Add the Clamp on probe accuracy to Basic accuracy 40 – 65 Hz : 0.6 % rdg. 2 dgt. (True RMS, crest factor 3)
Peak DC V measurement: Signal width 4 msec or more (single), 1 msec or more (repeated)
AC V, DC/AC A measurement:
Signal width 1 msec or more (single), 250 sec or more (repeated)
C (capacitance) 1.000 nF to 100.0 mF, 9 ranges, Basic accuracy: 1.0 % rdg. 5 dgt.
Continuity Check Continuity threshold: 20/50/100/500 , Response time: 10 ms or more
Diode test Open terminal voltage: 4.5 V or less, Testing current 1.2 mA or less, Threshold of forward voltage: 0.15 V to 3 V, seven stages
Frequency AC V, DC+AC V, AC A measurement, at pulse width 1 s or more (50 % duty ratio)
99.999 Hz (0.5 Hz or more) to 500.00 kHz, 5 ranges, 0.005 % rdg. 3 dgt.
dB conversion Standard impedance setting (dBm), 4 to 1200 , 20 stages
Display dB conversion value of AC voltage (dBV)
Temperature (thermocouples) K: -40.0 C to 800.0 C (-40.0 F to 1472.0 F)
Add accuracy of the Thermocouple probe to main unit accuracy: 0.5 % rdg. 3 C
Other functions Filter function (Remove harmonic noise, use only at 600 VAC, 1000 VAC ranges), Display value hold, Auto hold, Max/Min value display, Sampling select, Relative display, Measurement memory (400 data), Auto-power save, USB communication (option), 4-20 mA % conversion
Display Main and sub displays: 5-digits LCD, max. 60000 digits
Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 2 times/s, depending on measured value, Temperature: 1 time/s )
Power supply LR6 (AA) alkaline batteries 4, Continuous use: 100 hours
Dimensions and mass 93 mm (3.66 in) W 197 mm (7.76 in) H 53 mm (2.09 in) D, 650 g (22.9 oz) (with test leads holder and batteries)
Accessories Test Lead L9207-10 1, Instruction Manual 1, LR6 Alkaline Battery 4
