Description

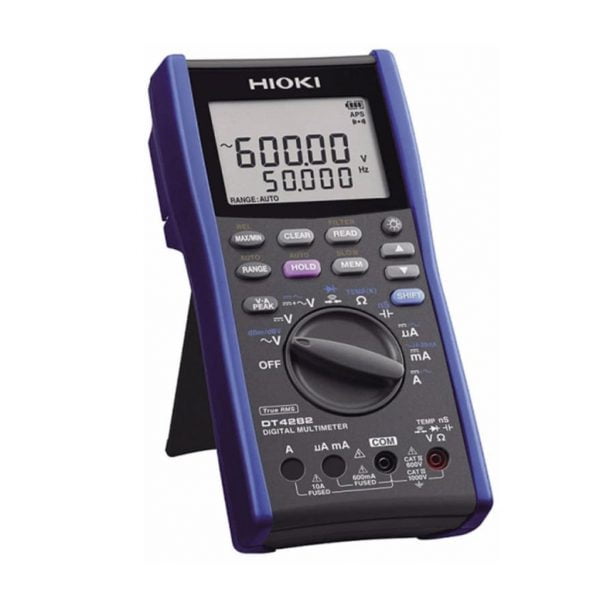

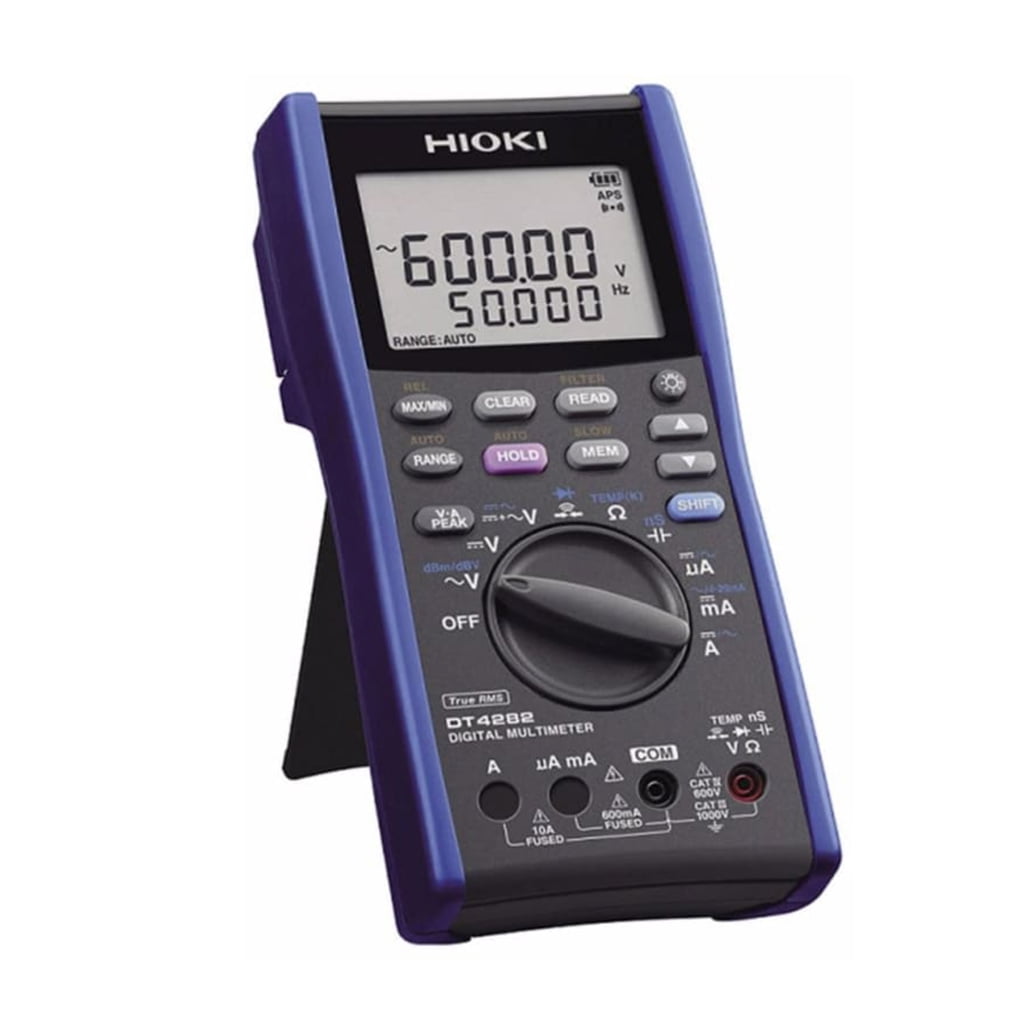

Jual Digital Multimeter Hioki DT4282, Seri Digital multimeter Hioki DT4200 terdiri dari rangkaian lengkap 9 model mulai dari profesional hingga industri hingga tipe saku. DT4282 adalah multimeter digital 60.000 hitungan presisi tinggi dengan input 10A langsung dan semua fungsi dan fitur yang diperlukan untuk pengujian lanjutan di laboratorium dan R&D.
Spesifikasi Digital Multimeter Hioki DT4282:
- terdiri dari barisan lengkap 9 model mulai dari profesional untuk industri untuk jenis saku. DT4282 adalah presisi tinggi 60.000 count DMM dengan masukan 10A langsung dan semua fungsi dan fitur yang diperlukan untuk pengujian lanjutan di laboratorium dan R & D.
- DC voltage 60.000 mV to 1000.0 V, 6 ranges, Basic accuracy: 0.025 % rdg. 2 dgt.
- AC Voltage* 60.000 mV to 1000.0 V, 6 ranges, Frequency characteristics: 20 Hz – 100 kHz
- Basic accuracy 45 – 65 Hz : 0.2 % rdg. 25 dgt. (True RMS, crest factor 3)
- DC + AC Voltage* 6.0000 V to 1000.0 V, 4 ranges, Frequency characteristics: 20 Hz – 100 kHz
- Basic accuracy 45 – 65 Hz : 0.3 % rdg. 30 dgt. (True RMS, crest factor 3)
- Resistance 60.000 to 600.0 M, 8 ranges, (Conductance: 600.00 nS, DT4282 only)
- Basic accuracy: 0.03 % rdg. 2 dgt.
- DC current 600.00 A to 10.000 A, 6 ranges, Basic accuracy: 0.05 % rdg. 5 dgt.
- AC Current* 600.00 A to 10.000 A, 6 ranges,
- Basic accuracy 45 – 65 Hz : 0.6 % rdg. 5 dgt. (True RMS, crest factor 3)
- Frequency characteristics: 20 Hz – 20 kHz (at 600 A to 600 mA range)
- AC Current* (use with Clamp on probes) N/A
- Peak DC V measurement: Signal width 4 msec or more (single), 1 msec or more (repeated)
- AC V, DC/AC A measurement:
- Signal width 1 msec or more (single), 250 sec or more (repeated)
- C (capacitance) 1.000 nF to 100.0 mF, 9 ranges, Basic accuracy: 1.0 % rdg. 5 dgt.
- Continuity Check Continuity threshold: 20/50/100/500 , Response time: 10 ms or more
- Diode test Open terminal voltage: 4.5 V or less, Testing current 1.2 mA or less, Threshold of forward voltage: 0.15 V to 3 V, seven stages
- Frequency AC V, DC+AC V, AC A measurement, at pulse width 1 s or more (50 % duty ratio)
- 99.999 Hz (0.5 Hz or more) to 500.00 kHz, 5 ranges, 0.005 % rdg. 3 dgt.
- dB conversion Standard impedance setting (dBm), 4 to 1200 , 20 stages
- Display dB conversion value of AC voltage (dBV)
- Temperature (thermocouples) K: -40.0 C to 800.0 C (-40.0 F to 1472.0 F)
- Add accuracy of the Thermocouple probe to main unit accuracy: 0.5 % rdg. 3 C
- Other functions Filter function (Remove harmonic noise, use only at 600 VAC, 1000 VAC ranges), Display value hold, Auto hold,
- Max/Min value display, Sampling select, Relative display, Measurement memory (400 data), Auto-power save, USB communication (option), 4-20 mA % conversion
- Display Main and Sub displays: 5-digits LCD, max. 60000 digits
- Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 2 times/s, depending on measured value, Temperature: 1 time/s )
- Power supply LR6 (AA) alkaline batteries 4, Continuous use: 100 hours
- Dimensions and mass 93 mm (3.66 in) W 197 mm (7.76 in) H 53 mm (2.09 in) D, 650 g (22.9 oz) (with test leads holder and batteries)
- Accessories Test Lead L9207-10 1, Instruction Manual 1, LR6 Alkaline Battery 4
