Description

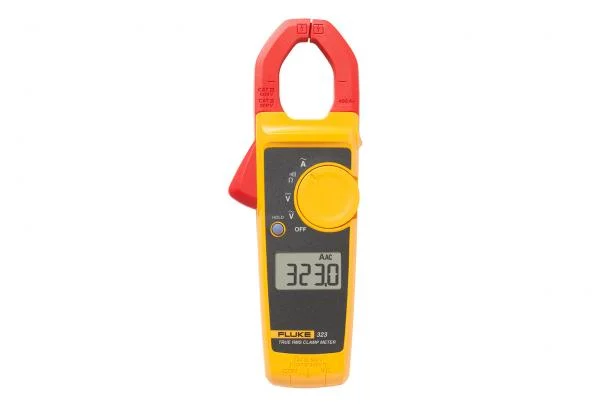

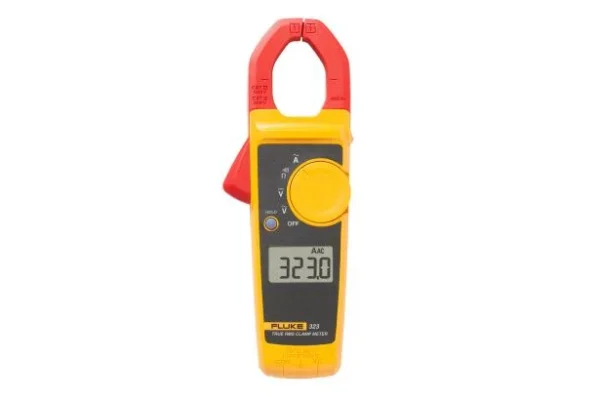

Jual Fluke 323 Clamp Meter True-RMS, Pengukuran true-rms dan ergonomi yang dioptimalkan menjadikan Pengukur Clamp Seri 320 alat pemecahan masalah umum terbaik bagi ahli listrik komersial dan perumahan. Model Fluke 323 ideal dan cocok untuk pengukuran arus hingga 400 A didalam tempat kabel yang sempit.
Fitur Fluke 323 Clamp Meter True-RMS, :
- Desain ramping dan ergonomis
- Peringkat keselamatan CAT IV 300V/CAT III 600 V
- Tombol HOLD
- Garansi dua tahun
- Kotak pembawa yang lembut
Spesifikasi detail:
| Specifications | ||
| AC current | Range | 400.0 A |
| Accuracy | 2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz) |
|
| DC current | Range | – |
| Accuracy | – | |
| AC voltage | Range | 600.0 V |
| Accuracy | 1.5% ± 5 digits | |
| DC voltage | Range | 600.0 V |
| Accuracy | 1.0% ± 5 digits | |
| Resistance | Range | 400.0 Ω/ 4000 Ω |
| Accuracy | 1.0% ± 5 digits | |
| Continuity | ≤ 70 Ω | |
| Capacitance | – | |
| Frequency | – | |
| AC response | True-RMS | |
| Backlight | – | |
| Data hold | Yes | |
| Contact temperature | – | |
| Min/Max | – | |
| Size | H x W x D (mm) | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) | |
| Weight | 265 g | |
| Category rating | CAT III 600 V CAT IV 300 V |
|
