Description
DESKRIPSI PRODUK GAUGE BLOCK STEEL 1.4MM 1 614600-031 MITUTOYO MT0005912

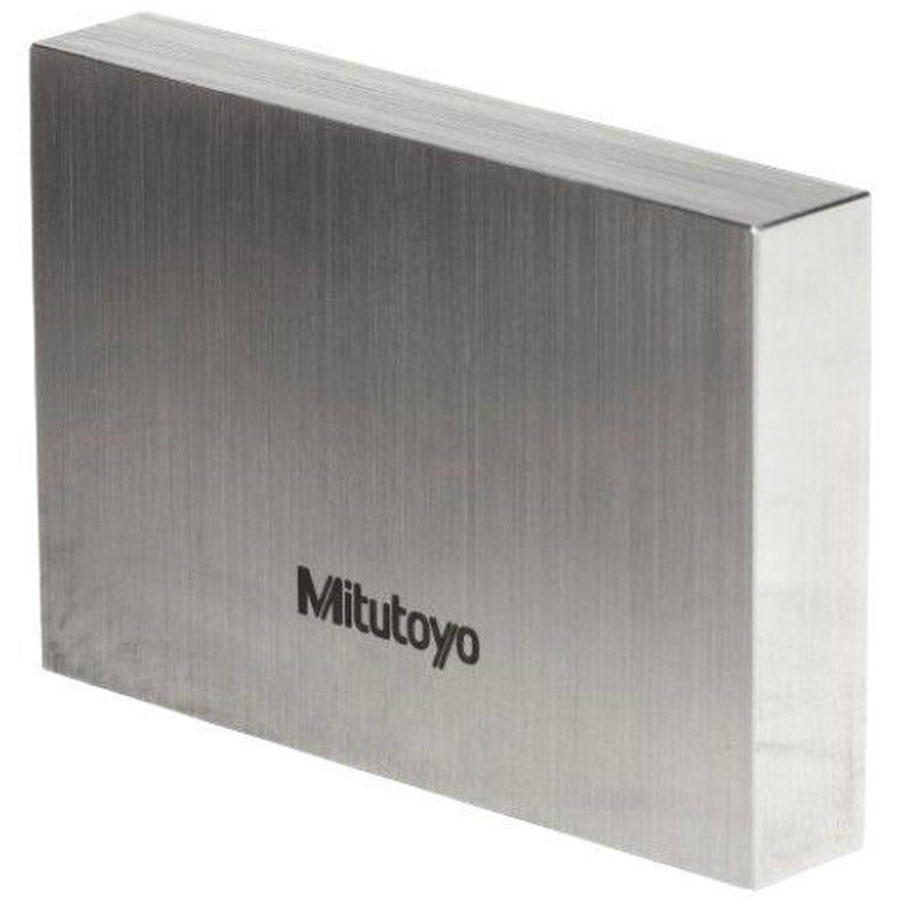

GAUGE BLOCK STEEL 1.4MM 1 614600-031 MITUTOYO MT0005912
GAGE BLOCK STEEL 1.4MM 1 614600-031 adalah alat yang digunakan untuk standar kalibrasi alat ukur. Alat ini digunakan un tuk dasar pengukuran saat mengukur benda kerja sehingga menghasilkan kepresisian yang tinggi terhadap nilai pengukuran benda kerja. Kelebihan alat ini adalah tingkat kepresisian dan akurasi yang tinggi sehingga dapat diandalkan untuk pengukuran yang sangat presisi. Gauge block besi ini digunakan untuk kalibrasi ukuran 1.4 MM. Gauge block besi sering digunakan di industri, pabrik, atau bengkel.
Benefit:
* Purchasing individual metric square gauge blocks is a cost-effective way to replace heavily used sizes.
* Please add the suffix number representing the national standard and grade required at the end of the Order No. when ordering these items.
* Special sizes that are not included in the charts can be supplied custom-made on request.
features
* Carbon high
* Chrome steel is employed to satisfy avariety of the material characteristics required for gauge blocks. Our advancedheat treatment technology for steel blocks, which involvesrepeated temperature cycling, simultaneously achieves excellent abrasion resistance and minimizes any change in length over time
DESKRIPSI :
* GRADE : 1
* Type : Square Individual
* Nominal length : 0.5 MM-4.5 MM (.010 INC-.19 INC)
* ACCURACY : +/- 0.00016 MM
* MATERIAL : Steel
* Standard : JIS
* Type : Square Individual
* Dimension_unit : 54 X 82 X 25 MM
GAUGE BLOCK STEEL 1.4MM 1 614600-031 MITUTOYO MT0005912
