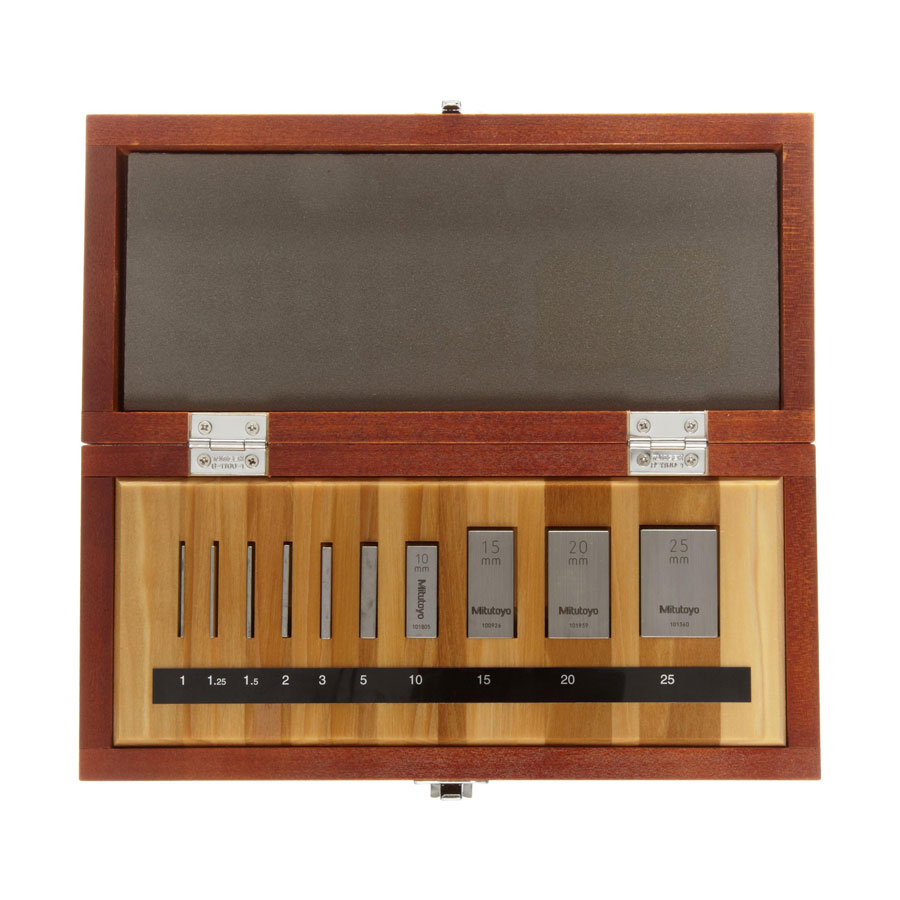

Deskripsi Produk GAUGE BLOCK STEEL SET (10) 0 516-103-16 MITUTOYO MT0005625
GAUGE BLOCK STEEL SET (10) 0 516-103-16 MITUTOYO MT0005625
GUGE BLOCK SET STEEL (10)0 516-103-16 adalah alat yang digunakan untuk standar kalibrasi alat ukur. Alat ini digunakan untuk dasar pengukuran saat mengukur benda kerja sehingga menghasilkan kepresisian yang tinggi terhadap nilai pengukuran benda kerja. Alat ini mempunyai ukuran yang bervariasi sehingga dapat dilakukan kalibrasi ses uai dengan kebutuhan yang diperlukan. Gauge block set besi ini digunakan untuk kalibrasi ukuran 1.00-25 MM. Gauge block set besi sering digunakan di industri, pabrik, atau bengkel.
Benefit
* Dedicated gauge block sets for micrometer inspection.
* Sets 516-106/7/8 and 516-322/3 ar e recommended for checking instrumental errors in micrometers due to the choice of block size sensuring that the instrument is checked through a full rotation of the spindle over therange 0-25 mm (or 0-1 In).
* Sets 516-115/6/7, 516-165/6 and 516-177 contain blocks in 25 mm (or 1 In) steps for aiding inspection of large micrometers in conjunction with one of the above mentioned sets.Sets 516-580/1/2, 516-390/1/2 are dedicated to the QuantuMike with its 2mm/rev spindle feed.
Features
* Checking instrumental errors in micrometers due to the choice of block sizes ensuring that the instrument is checked through a full rotation of the spindle over the range 0
* 25 mm (or 1 In)
Deskripsi :
* Grade : Grade 0
* Qty_per_set : 10 EA
* Range : 1.00-25 MM
* Type : Micrometer Inspection Set
* Size : 1.00, 1.25, 1.50, 2, 3, 5, 10, 15, 20, 25 MM
* Accuracy : +/- 0.00010 MM
* Material : Steel
* Standard : JIS
* Type: Inspection Set
* Dimension_unit : 120 X 245 X 43 MM
GAUGE BLOCK STEEL SET (10) 0 516-103-16 MITUTOYO MT0005625
