Description

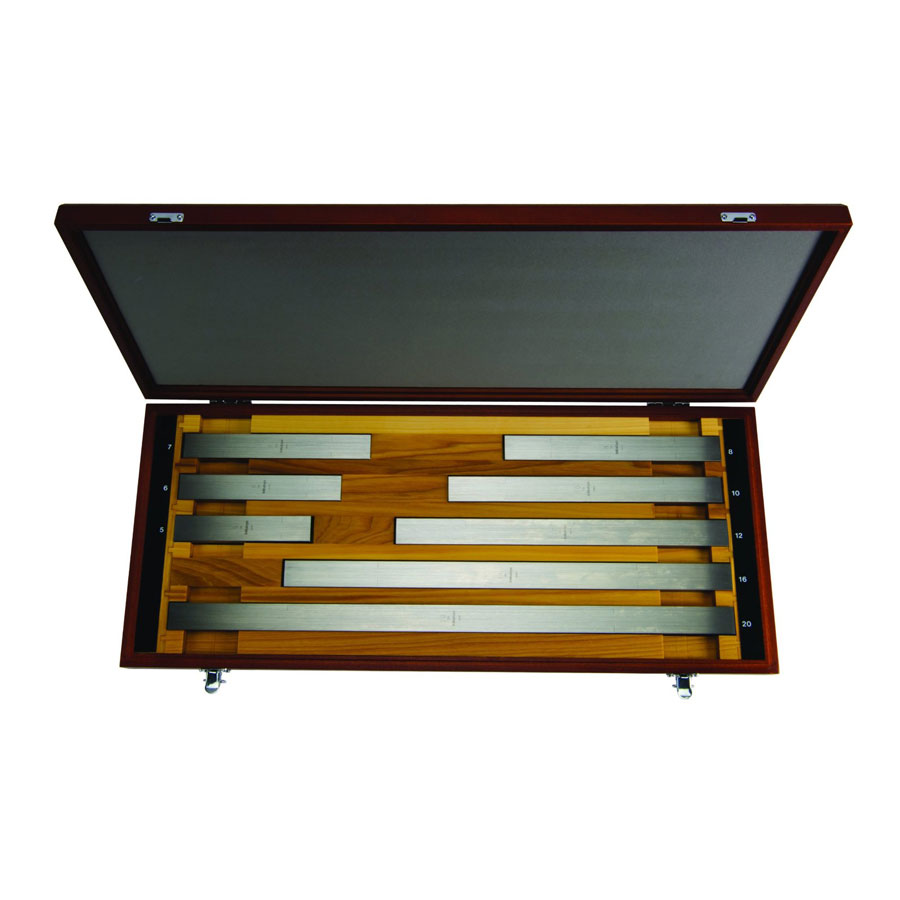

DESKRIPSI PRODUK GAUGE BLOCK STEEL SET (8) 0 516-752-10 MITUTOYO MT0005937
GAUGE BLOCK STEEL SET (8) 0 516-752-10 MITUTOYO MT0005937
GAGE BLOCK SET STEEL (8)0 516-752-10 adalah alat yang digunakan untuk standar kalibrasi alat ukur. Alat ini digunakan untuk dasar pengukuran saat mengukur benda kerja sehingga menghasilkan ke presisian yang tinggi terhadap nilai pengukuran benda kerja. Alat ini mempunyai ukuran yang bervariasi sehingga dapat dilakukan kalibrasi sesuai dengan kebutuhan yang diperlukan. Gauge block set besi ini digunakan untuk kalibrasi ukuran 125-500 MM. Gauge block set besi sering digunakan di industri, pabrik, atau bengkel.
BENEFIT :
* A wide choice is provided to best match the target applications:sets containing from 2 to 112 blocks are available. The wear to afrequently used square gauge block set can be drastically reduced byusing tungstencarbide wear blocks on the ends of a stack. There are twoavailable, of nominal dimension 1mm and 2mm. These block s are much morewear-resistant than steel blocks, and they also absorb m ost of the wearthat would otherwise occur to the blocks in the set due to contact, andtherefore maximize the set’s longevity. Wear blocks a re relativelyinexpensive and can be readily discarded when no longer serviceable.To achieve maximum protection, the same face of each we ar block shouldalways be wrung to a set block, so the opposite, wearin g, face nevertouches a set block
FEATURES :
* Several unique characteristics
DESKRIPSI :
* Size : 125, 150, 175 200, 250 300, 400, 500 MM
* STANDARD : Japan International Standard
* TYPE : Square Set
* RANGE : 125-500 MM
* QUANTITY PER SET : 8
* MATERIAL : STEEL
* GRADE : 0
* DIMENSI : 152 X 101 X 30 MM
GAUGE BLOCK STEEL SET (8) 0 516-752-10 MITUTOYO MT0005937
