Description

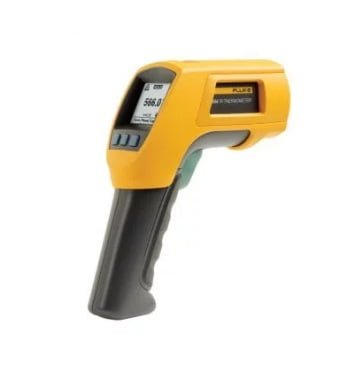

Jual Infrared & Contact Thermometer Fluke 566 Thermal Gun menawarkan rentang ukuran yang luas dari -40 hingga 1202°F. Fitur canggih mudah diakses dengan tombol soft-key dan tampilan grafis. Termometer inframerah/kontak Fluke 566 memungkinkan pengukuran objek yang lebih kecil dari jauh, dengan rasio jarak ke titik 30:1. Termokopel inframerah/kontak Fluke 566 kompatibel dengan semua termokopel tipe K minikonektor standar yang memungkinkan Anda menghemat investasi termokopel.
Fitur emisivitas yang dapat disesuaikan Termometer inframerah/kontak Fluke 566, termasuk tabel material bawaan, memungkinkan untuk mengukur berbagai macam permukaan. Penyimpanan data 20 titik memungkinkan penarikan dan pengunduhan data dengan mudah. Dapatkan koleksi fluke lainnya di alatproyek.com dan alatproyek.id yang dijamin keasliannya.
Spesifikasi detail Infrared & Contact Thermometer Fluke 566 Thermal Gun:
- Ukur -40° hingga 650°C/-40° hingga 1202°F
- Tombol soft-key dan tampilan grafis
- Rasio jarak ke titik 30:1
- Kompatibel dengan termokopel tipe-K
- Emisivitas yang dapat disesuaikan dan tabel material bawaan
- 20 titik penyimpanan data yang dapat diunduh
- Two-in-one IR and contact thermometer with a 30:1 distance-to-spot ratio
- Measures temperatures from -40°C to 650°C (40°F to 1202°F)
- Makes it easy to access advanced features with the soft-key buttons and graphical display
- Features rugged, ergonomic design that stands up to tough industrial, electrical, and mechanical environments
- Works with most K-type thermocouples
| Infrared temperature range | -40°C to 650°C (-40°F to 1202°F) | |
| Infrared accuracy | < 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F); | |
| > 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater | ||
| Display resolution | 0.1°C / 0.1°F | |
| Infrared spectral response | 8 µm to 14 µm | |
| Infrared response time | < 500 msec | |
| Thermocouple Type-K input temperature range | -270°C to 1372°C (-454°F to 2501°F) | |
| Thermocouple Type-K input accuracy | -270°C to -40°C | ±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F)) |
| -40°C to 1372°C | ±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater | |
| D:S (distance to measurement spot size) | 30:1 | |
| Laser sighting | Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm | |
| Minimum spot size | 19 mm (0.75 in) | |
| Emissivity adjustment | By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01 | |
| Data storage with date/time stamp | 20 points | |
| PC interface and cable | None | |
| Hi/Low alarms | Audible and two-color visual | |
| Min/Max/Avg/Dif | Yes | |
| Display | Dot matrix 98 x 96 pixels with function menus | |
| Backlight | Two levels, normal and extra bright for darker environments | |
| Trigger lock | Yes | |
| Switchable Celsius and Fahrenheit | Yes | |
| Power | 2 AA/LR6 Batteries | |
| Battery life | If used continuously | Laser and backlight on, 12 hours; laser and backlight off, 100 hours |
| Operating temperature | 0°C to 50°C (32°F to 122°F) | |
| Storage temperature | -20°C to 60°C (-40°F to 140°F) | |
| Bead thermocouple Type-K range | -40°C to 260°C (-40°F to 500°F) | |
| Bead thermocouple Type-K accuracy | ±1.1°C (2.0°F) from 0°C to 260°C (32°F to 500°F), typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F) |
|
