DESKRIPSI PRODUK JARUM UKUR DIAL INDICATOR 4/0.1MM 2928F/2928S MITUTOYO 10001420
JARUM UKUR DIAL INDICATOR 4/0.1MM 2928F/2928S MITUTOYO 10001420

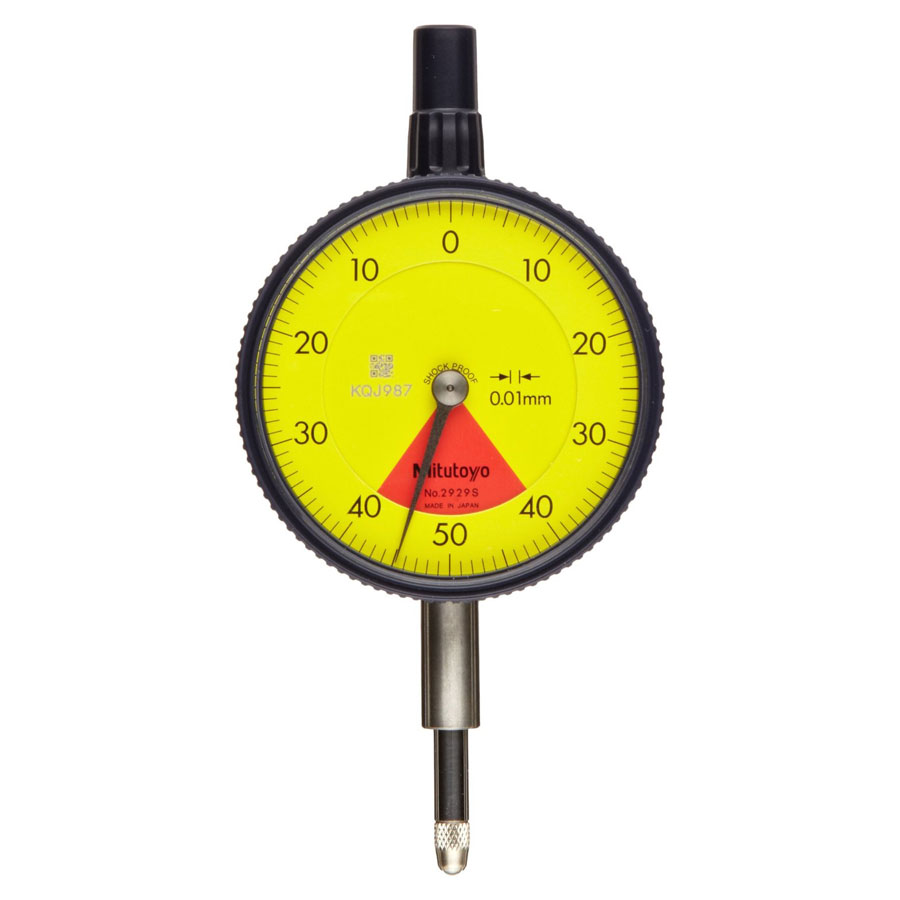

DIAL INDICATOR 4/0.1MM 2928F/2928S adalah satu a lat ukur yang dapat mengukur kerataan benda kerja. Dial indicator Mit utoyomemungkinkan kita untuk memeriksa kerataan dari permukaan benda , memeriksa penyimpangan yang kecil pada bidang , memeriksa penyimpang an eksentris, memeriksa kesejajaran permukaan benda, menyetel kesentrisa n benda pada pencekam mesin bubut, dan memeriksa penyimpangan bantalan p ada poros engkol . Dial indicator Mitutoyo ini cocok untuk perban dingan pengukuran Jig dan Fixture.Dial indicator Mitutoyo tipe One Revolution dengan pembacaan 2-0-2 dan range pengukuran 0-4 MM sering digunakan di industri, bengkel, laboratorium, atau konstruksi.
Benefit
– Mitutoyo’s unique shock-proof mechanism is incorporated. providingimproved resistance to shock due to sudden spindle retraction caused byimpact.
– This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions.
– Thedead zone in red indicates “accuracy not guaranteed”.
Features
– A carbide contact point is used
– Come with limit pins and anouter frame clamp as standard
– Shockproof
– Stem diameter 8MM.M2.5-0.45 thread size
– Measuring force: 1.4N or less
DESKRIPSI :
– Part Number : 2928S
– Style Name : 0-4
– Maximum Measurement :0-4MM
– Additional Features : Shockproof
– Color :Yellow
– Display : 2-0-2
– Measurement Accuracy :+/-0.04MM
– Outside Diameter : 57 MM
– Range : 0-4MM
– Resolution: 0.1MM
– Shape : Lug Back
– Size : 0 -4MM Range
– System of Measurement : Metric
– Material Type :Stainless Steel
– Stem Outside Diameter : 8 MM
– Thread Style :M2.5X0.45
– Type : One Revolution
– Dimension_unit : 128 X 58 X 82 MM
