Description
Deskripsi Produk LAN Cable Hi Tester Hioki 3665-20

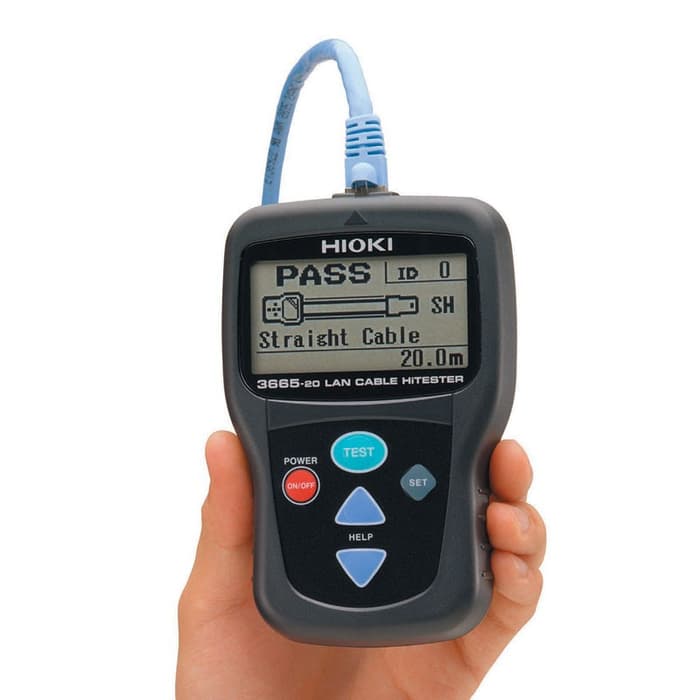

LAN Cable Hi Tester Hioki 3665-20
Spesifikasi :
- Measurable cable Twisted-pair cable, characteristic impedance: 100 Ω, shielded and unshielded, CAT 3, 4, 5, 5e and 6
- Compatible connectors RJ-45 plugs
- Wire map test Detectable errors: open, short, reversed, transposed, split pairs and other incorrect wiring
- (Wiring condition and shielding can be confirmed using the Terminator 9690)
- Cable length measurement Measurable lengths: 2 m to 300 m (6.6 ft to 984 ft)
- Measurement accuracy: ± 4 % rdg. ± 1 m (3.3 ft)
- Display resolution: 0.1 m (0.3 ft)
- Direction measurement Up to 21 cables can be identified using the supplied Terminator 9690 and optional Models 9690-01 to 9690-04
- Power supply LR6 (AA) alkaline battery ×2, 1.4 VA max., Continuous use : 50 hr (at measurement interval of 1 minute)
- Dimensions and mass 85 mm (3.35 in)W × 130 mm (5.12 in)H × 33 mm (1.30 in)D
- Accessories Terminator 9690 ×1, Carrying case ×1, LR6 (AA) alkaline battery ×2, Instruction manual ×1
LAN Cable Hi Tester Hioki 3665-20
