Description

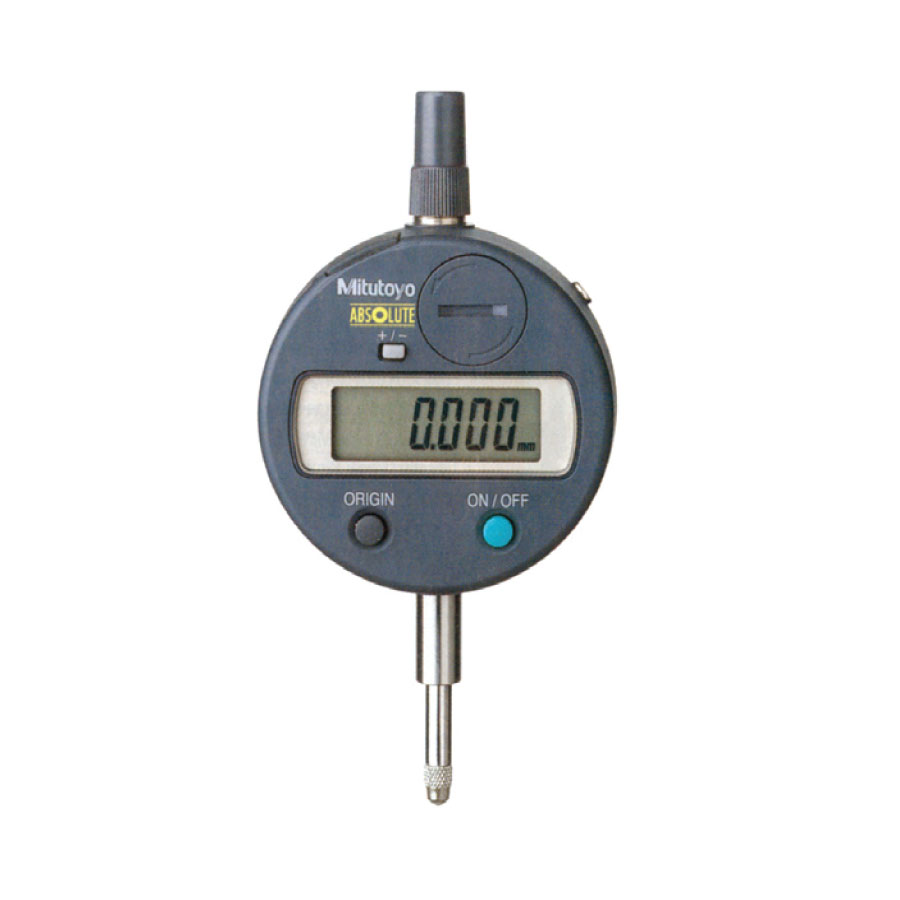

Jual Mitutoyo Absolute Digital Indicator 12/0.01MM 543-781B, barang dijamin asli dan bergaransi resmi hanya di alatproyek
Benefit :
* Cost-effective oriented design ID-SX indicators use abutton-typebattery (SR44) and come with the minimum of functionality for ease ofuse.
* There is a choice of models in the lineup allowingselection of 0.01 MM, 0.001 MM or INC-based measurement resolutions.
* IP53dust/water protection level The models listed below also provide IP53 dust/water protection level specifications: 543-794/94B/95/95B/96/96B
* ABS (absolute)sensorThese Digimatic indicators employ Mitutoyo’s propriet ary * ABS(absolute)sensor, which makes it possible to restore the origin point even if the power is turned off.
* This eliminates the need to performoriginrestoration each time the power is turned on.
* Further more, this sensor ensu res that over speed errors do not occur, which improves reliability. < li>Long battery life One button battery (SR44) prov ides approximately 20,000 hours of continuous use for.0005 in/0.01MM resolution models.
Features :
- Employing the ABSOLUTE linear encoder, the Signal ID-S always displays the spindle in Absolute Position from the original power-on
- After the initial zero-setting with the ORIGIN button,the repeated absolute positioning i s no longer necessary over entire battery life
- Unlimited response speed eliminates over-speed errors
Deskripsi Mitutoyo Absolute Digital Indicator 12/0.01MM 543-781B:
- Material : Stainless Steel
- Overall_accuracy : +/- 0.02 MM
- Range : 0-12.7 MM
- Repeatability : None
- Resolution : 0.01 MM
- Type: Standard
- Back Type: Flat Back
- Part Number: 543-781B
- System of Measurement: Metric
- Measurement Accuracy: 0.02 MM
- Output Type: SPC
- Outside Diameter: 8 INC
- Power Source Type: SR44 batter
- Range: 0-12.7 MM
- Resolution: 0.01 MM
- Shape: Flat
- UNSPSC Code: 39121534
- Type : Digimatic Indicator
- Dimension_unit : 189 X 105.5 X 72 MM
