Description

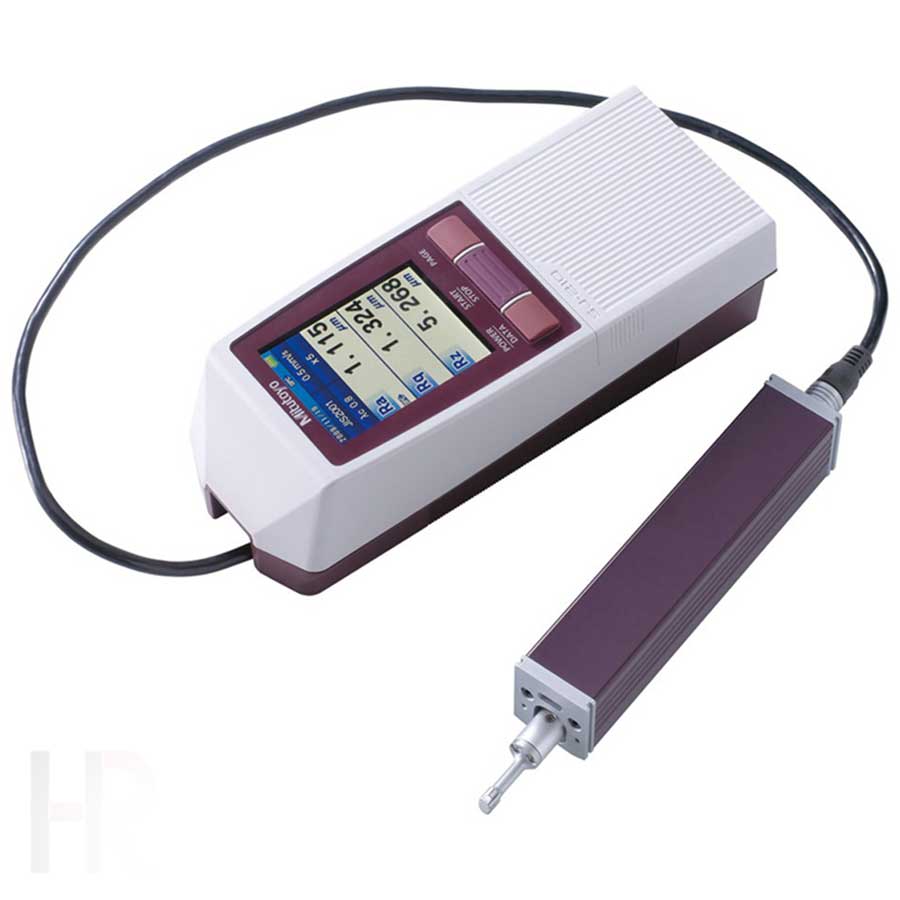

Jual Mitutoyo Surftest SJ-210 IN/0.75MN 178-561-01E, barang dijamin asli dan bergaransi resmi hanya di alatproyek.
Spesifikasi detail Mitutoyo Surftest SJ-210 IN/0.75MN 178-561-01E:
- Measuring range X-axis: 16.0 mm
- Detector range: 360 micron (- 200 micron + 160 micron)
- Range/Resolution: 360 micron / 0.02 micro n, 100 micron / 0.006 micron, 25 micron / 0.002 micron
- Measuring force/Stylus tip shape: 0.75 Mn/6 0 deg., 2 micronR
- Skid force: 400mN or less
- Applicable stand ards: JIS 1982/ JIS 1994/ JIS 2001/ ISO 1997/ ANSI/ VDA
- Assessed profile: Primary profile, Roughness profile, DF profile, Roughness motif profile
- Analysis graph: BAC and ADC curves
- Filter: G aussian, 2CR75, PC75
- Cut off value λc: 0.08, 0.25, 0.8, 2.5 mm Cut off value λs: 2.5, 8 micron
- Sampling length: 0.08, 0.25, 0 .8, 2.5 mm
- No. of sampling lengths: X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 (arbitrary length (0.3 to 16.0mm: 0.01mm interval)
- Dimensions of LCD display area: 36.7 X 48.9 mm
- Vertical display: 1 row/ 3 rows/ Trac e
- External I/O functions: USB I/F, Digimatic o utput, printer output, RS-232C I/F, foot switch I/F
- Storing measurement condition: When the power is turned off
- Storage: Built-in memory: Measurement condition (Up to 10)
- Storage: Memory card (optional): 500 measurement conditions, 10000 measured profiles, 500 display images, Text files (Measurement condition/ Measurement data/ Assessed profile/ Material ratio curve/ Profile height amplitude distribution curve)
- Calibration:Auto-calibration with the entry of numerical value/ Avarege calibration with multiple measurement (Max. 5 times) is available.
- Power saving function: Auto sleep (settable i n the range of 10 to 600 sec)
- Power supply: Built-in battery (rec hargeable Ni-MH battery) / AC adapter
- Charging time of the built-i n battery: about 4 hours (may vary due to ambient temperature)
