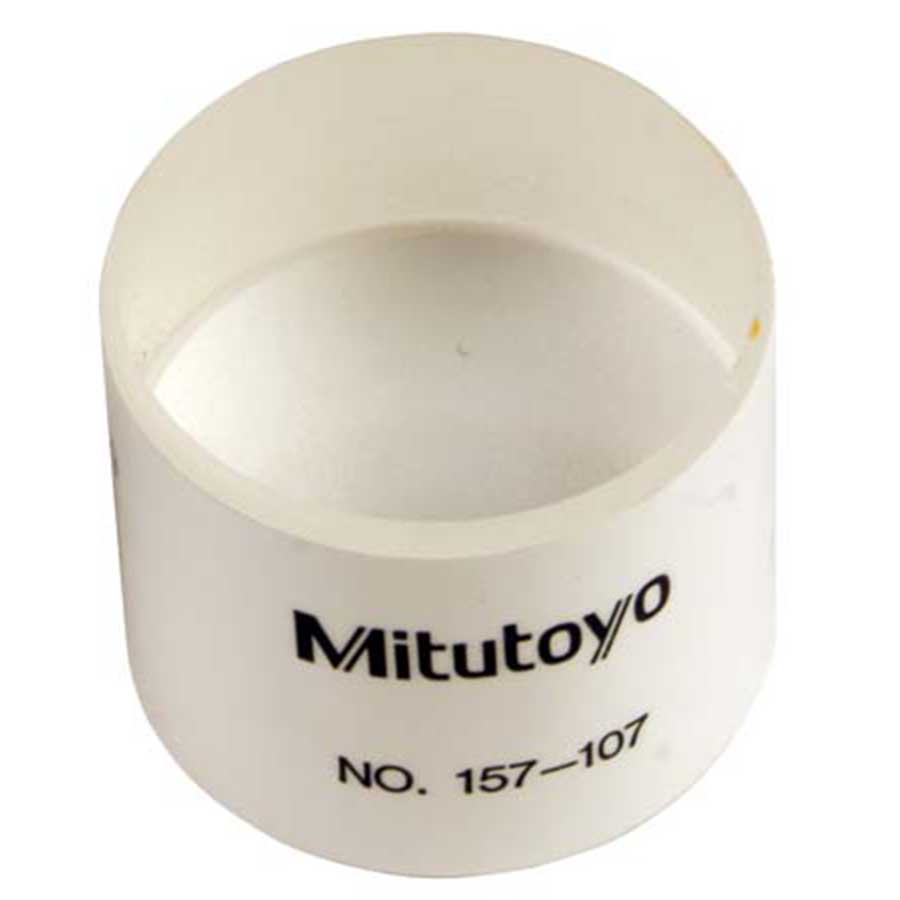

OPTICAL PARALLEL SET 1-2IN (4) 157-902 MITUTOYO MT0002864

Description

Deskripsi Produk OPTICAL PARALLEL SET 1-2IN (4) 157-902 MITUTOYO MT0002864

OPTICAL PARALLEL SET 1-2IN (4) 157-902 MITUTOYO MT0002864

Features
* Designed to inspect parallelism and flatness of measuring faces of micromters.
* Each set consists fo 4 thickness.
* Supplied in fitted wooden case.

Deskripsi
* Range of micrometer to be checked: 1 – 2 inch
* Sizes of parallels included in set: 1 inch, 1.0062 inch, 1.0125 inch, 1.0187 inch
* Nominal dimension [mm]: 25 (157‑105), 25,12 (157‑106), 25,25 (157‑107), 25,37 (157‑108)
* Measuring face: 0.1 micrometer
* Parallelism: 0.2 micrometer
* Type : Optical Set
* Dimension_unit : 170 X 9 2 X 35 MM

OPTICAL PARALLEL SET 1-2IN (4)157-902 MITUTOYO MT0002864
