Description

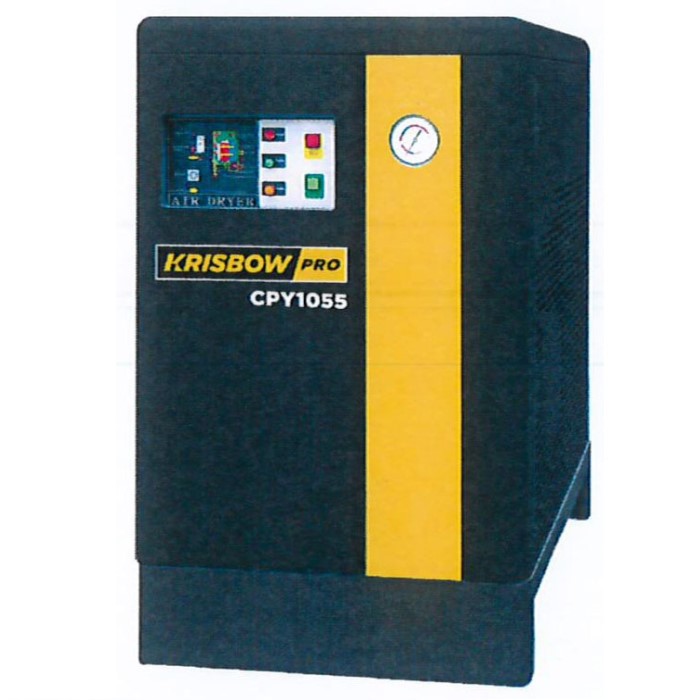

Jual Pengering Udara Krisbow Air Dryer 10HP 53CFM 220V 1PH, untuk menghilangkan kandungan air pada udara terkompresi. Sistem ini biasanya menjadi satu kesatuan proses dengan kompresor. Udara terkompresi hasil dari kompresor dapat dikeringkan menggunakan air dryer. Cocok untuk membantu kebutuhan penggerak aktuator dari control valve, power dari pompa chemical, aktuator pneumatic, atau untuk menyelimuti kabel-kabel bawah tanah untuk menghindari hubungan pendek akibat terbentuknya pengembunan.
Fitur Pengering Udara Krisbow Air Dryer 10HP 53CFM 220V 1PH:
- Excellent Properties of KRISBOW Series of Dryers :
- High temperature in the inlet:The post cooler and precooler can allow air below 80C to enter.
- High capacity of freezing:It is equipped with large horse power refrigerant compressor that can make fully cooling – before refrigerating ,the wind quantity of which is larger by 30% than the products of the kind .In addition ,the temperature of the dew point is steady ,which will make 99% vapor change into dew drops.
- Excellent drainage:The efficiency of the supper centrifugal and current-collecting double water separator prevails over99%.
- High quality: The world famous high quality parts and fittings with lo ng life-span are adopted.
- Nice appearance and easy application : No consumables, full-automatic drainage and manual drainage make a low working cost .The continuous working is reliable.
Spesifikasi detail Pengering Udara Krisbow Air Dryer 10HP 53CFM 220V 1PH:
- Meet to air compressor for HP : 10
- Limit of utilization conditions :
- Inlet temperature : 80 C
- Ambient temperature : 45 C
- Air pressure : 1.0 Mpa (10bar)
- Pressure dew-point : 2 – 5 C (sama dengan airdew-point 20 C)
- Refrigerant : R134
- Power : AC220V/50Hz 1 Phase
- Refrigerant compressor motor HP : 1/2
- Diameter of air entry and exit tube : 1 IN
- Dimensi produk : 70 x 42 x 71 cm
- Processing Air Volume Liter/min / CFM : 1500 / 53
