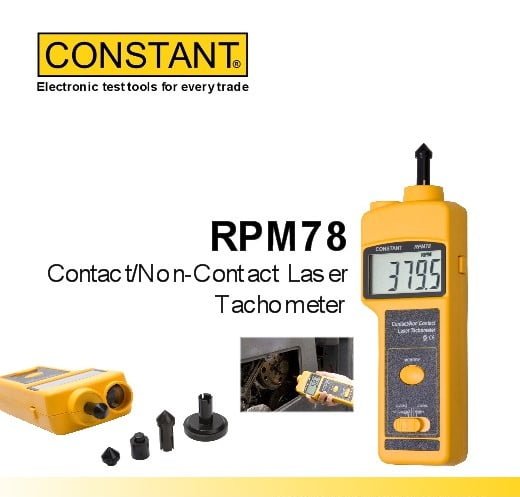

Tachometer Constant RPM78

Description

Deskripsi Produk Tachometer Constant RPM78

Tachometer Constant RPM78

Fitur :

• Contact and non-contact modes in one instrument
• Easy to use
• Detecting distance for non-contact tachometer up to 100cm
• Wide measurement range of RPM up to 99999
• High resolution of 0.1 RPM
• Memory of record
• High accuracy and fast sampling time

Spesifikasi :

• Measurement Range Non-Contact Tachometer : 5 ~ 99999RPM
• Contact Tachometer : 0.5 ~ 19999RPM
• Surface Speed : 0.05 ~ 1999.9m/min.
• 0.2 ~ 6560ft/min
• Resolution RPM : 0.1 RPM (< 1000rpm)
• 1 RPM ( 1000rpm)
• Surface speed :
• 0.01m/min (< 100m/min.)
• 0.1m/min ( 100m/min.)
• 0.1ft/min (< 1000ft/min)
• 1ft/min ( 1000ft/min)
• Display LCD, size 60x30mm
• 5 digits with display unit
• Accuracy (0.05% + 1 digit)
• Detecting Distance 5 ~ 100cm typically
• Laser Less than 1mW, class 2 laser diode, red wave length is 645nm approximately
• Operating Temperature 0 ~ 50C (32 ~ 122F)
• Operating Humidity < 80% RH
• Memory Last/maximum/minimum value
• Battery 4 x 1.5V (AA size)
• Size 215 x 75 x 38mm
