Description
Deskripsi Produk : UPS Compact Pro ER 10 Backup Time 8-10 Menit Emmerich ERCMP10ER7X2

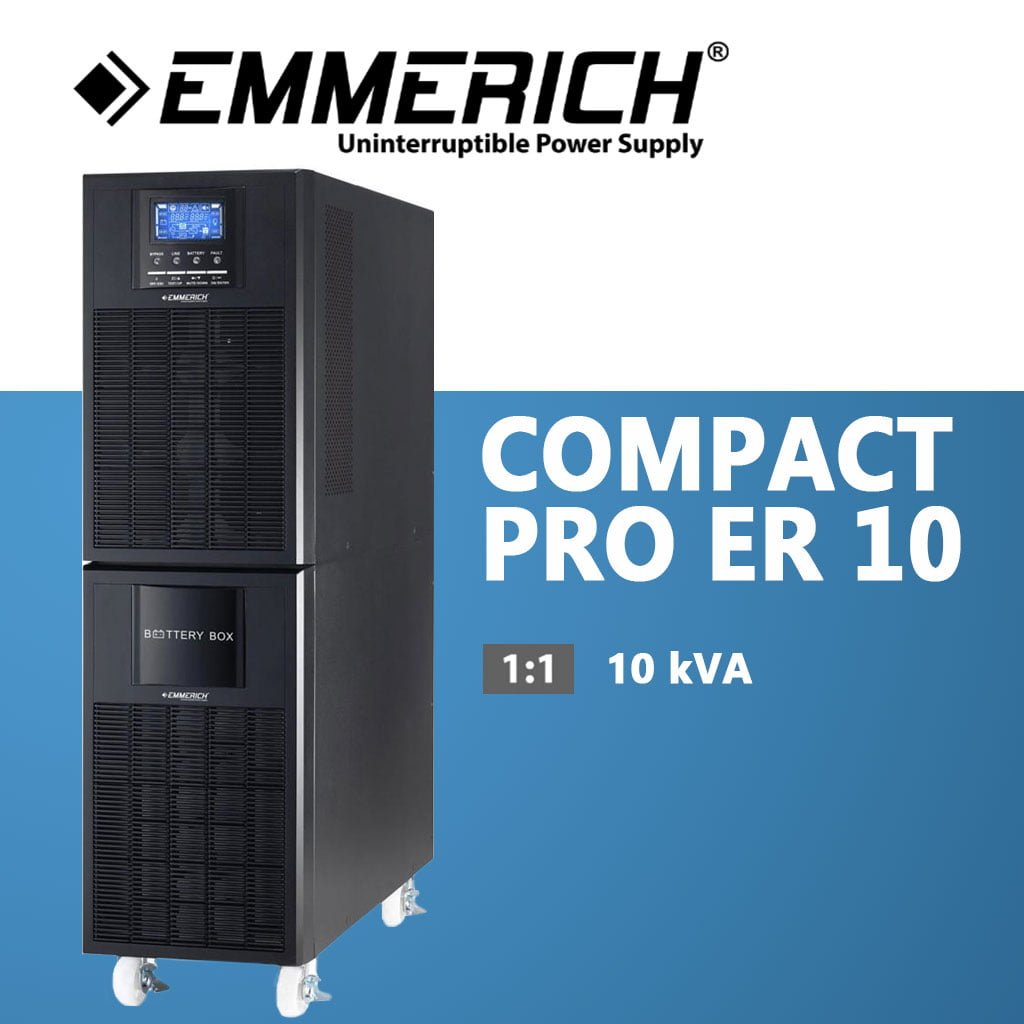

UPS Compact Pro ER 10 Backup Time 8-10 Menit Emmerich ERCMP10ER7X2
Features:
• True double-conversion.
• Output power factor 0.8
• Generator compatible.
• Converter mode available.
• Input power factor correction.
• Wide input voltage (110 V —300 V).
• Optional isolation transformer available.
• Microprocessor control optimizes reliability.
• Smart SNMP works well with either USB or RS-232 together.
• Comprehensive display allows easy monitoring and access of UPS status.
• Adjustable battery number.
• Emergency power off (EPO) function.
Spesifikasi :
-Phase : Single Phase
-Capacity : 10000 VA / 8000 W
-Back-Up Time Full Load : 8-10 minutes
INPUT
-Nominal Voltage : 208/220/230/240 VAC
-Voltage Range : 110-300 VAC (Based an load at 50%); 176-300 VAC (Based on load at 100%)
-Frequency Range : 46 ~ 54 Hz or 56 ~ 64 Hz
OUTPUT
-Output Voltage : 208/220/230/240 VAC
-Voltage Regulation : ± 1%
-Frequency Range (Synchronized Range) : 46-54 Hz or 56-64 Hz
-Current Crest Ratio : 3:1
-Transfer Time AC Mode to Battery Mode : Zero
-Transfer Time Inverter to Bypass : zero
EFFICIENCY
-AC Mode : 93%
-Battery Mode : 91%
BATTERY
-Battery Model : Long-run model
-Battery Type : 12V/7(x2) Ah
-Numbers : 20 pcs
-Charging Current (max.) : 1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries)
-Charging Voltage : 273 VDC ±1% (Based on 20pcs batteries)
LAIN-LAIN
-Form Factor : Tower
-Indicator LCD : Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
-Noise Level : Less than 58dB @ 1 Meter
-Alarm Battery Mode : Sounding every 4 seconds
-Alarm Low Battery : Sounding every second
-Alarm Overload : Sounding twice every second
-Alarm Fault : Continuously sounding
-Management Smart RS-232 / USB : Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8, Linux and MAC
-Dimension DxWxH(mm) : 442 x 190 x 318
UPS Compact Pro ER 10 Backup Time 8-10 Menit Emmerich ERCMP10ER7X2
