Description

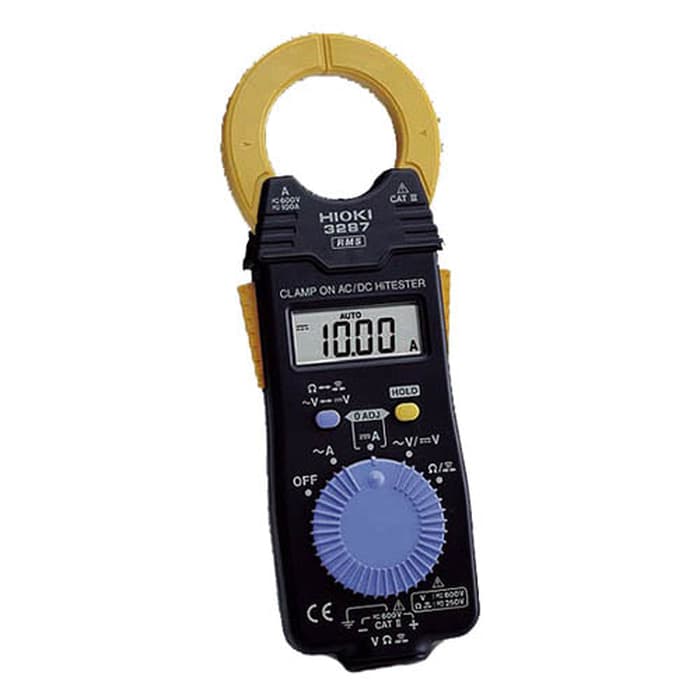

Jual Clamp On AC DC Hi Tester HIOKI 3287, barang dijamin asli dan bergaransi resmi hanya ada di alatproyejk
Spesifikasi Clamp On AC DC Hi Tester HIOKI 3287:
- DC current 10.00/ 100.0 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
- AC current 10.00/ 100.0 A (10 Hz to 1 kHz, True RMS)
- Basic accuracy: ±1.5 % rdg. ±5 dgt.
- DC voltage 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt.
- AC voltage 4.199 V to 600 V, 4 ranges (30 to 500 Hz, True RMS)
- Basic accuracy: ±2.3 % rdg. ±8 dgt.
- Resistance 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt
- Crest factor 2.5 or less (150 A, 1000 V max.)
- Other functions Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
- Display LCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
- Power supply Coin type lithium battery (CR2032) ×1, Continuous use 25 hours
- Core jaw dia. φ 35 mm (1.38 in)
- Dimensions and mass 57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in)
