Deskripsi Produk Clamp On Earth Tester HIOKI FT6380

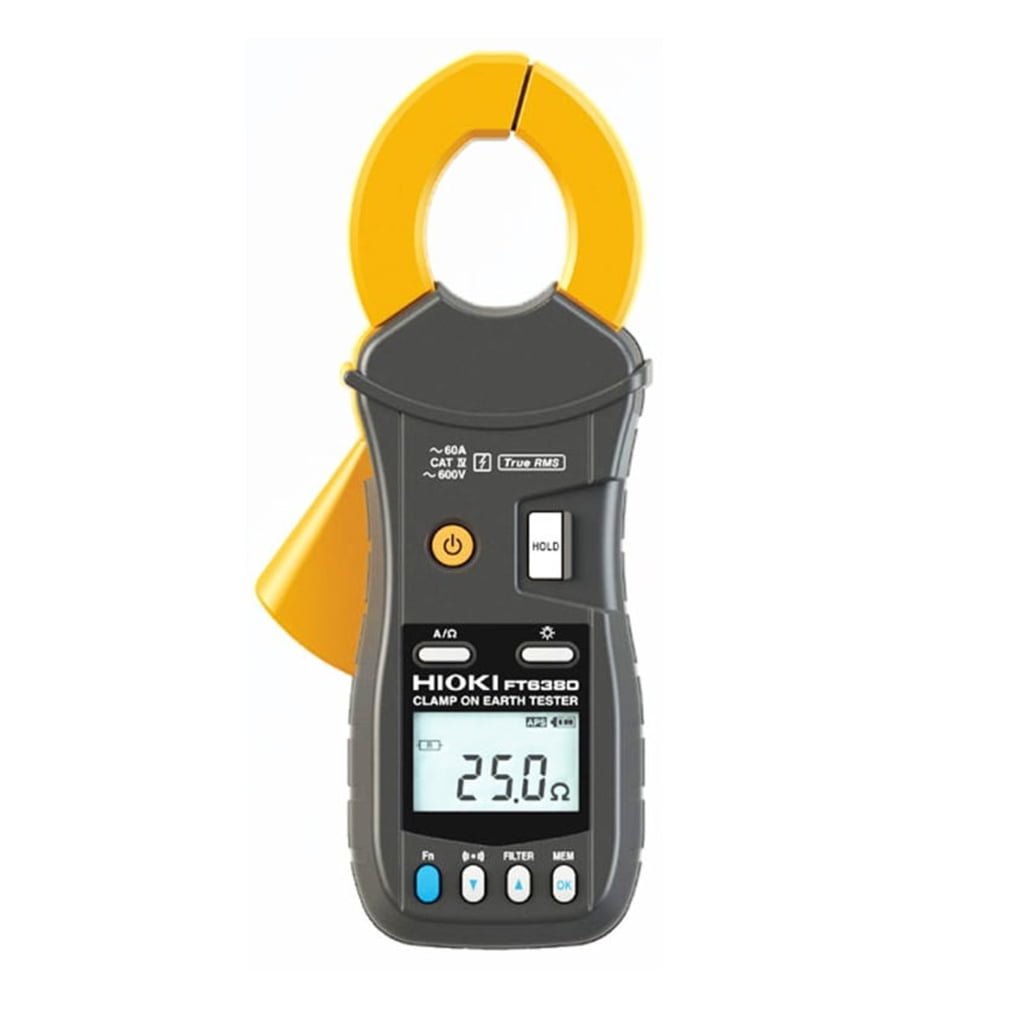

Clamp On Earth Tester HIOKI FT6380
Spesifikasi :
- Country of origin Japan
- Model FT6380
- Measurement Principle The instrument has two cores for voltage injection and current measurement. From the defined voltage and measured current, the total circuit loop resistance is calculated
- Note) For multi grounded systems only. In a multi-grounded system, the larger the number of grounding poles, the more accurate the measured value.
- Earthing resistance 0.20 ? (0.01 ? resolution) to 1600 ? (20 ? resolution), 10 ranges, Zero suppression: Less than 0.02 ?, Accuracy: ±1.5 % rdg. ±0.02 ?
- Max. allowable input AC 100 A continuous, AC 200 A for 2 minutes or shorter (at 50/60 Hz, requires derating at frequency)
- Max. rated voltage to earth AC 600 V CAT IV
- Memory function 2000 data
- Alarm function For resistance measurement and current measurement, Beeps when measured value is less than or greater than threshold
- Other functions Data hold, Back light, Filter, Auto power save
- Display Digital LCD, max. 2000 dgt., Display refresh rate: 500 msec (2 times/second)
- Waterproof and dustproof IP40 (EN60529: 1991+A1: 2000) with clamp sensor closed
- Communication interface Model FT6381 only: Bluetooth® v2.1+EDR, Compatibility for Smartphone / Tablet, Displays measured values on the screen of an Android™ handset via Bluetooth, Applicable OS: Android™ 2.1 or later
- Power supply LR6 (AA) alkaline batteries ×2, Max. rated power: 450 mVA, Continuous use : 35 hr (in-house testing conditions)
- Core jaw diameter ? 32 mm (1.26 in)
- Dimensions and mass 73 mm (2.87 in) W × 218 mm (8.58 in) H × 43 mm (1.69 in) D
- Accessories Carrying case ×1, Resistance check loop ×1, Strap ×1, LR06 alkaline battery ×2, Instruction manual ×1
