Description

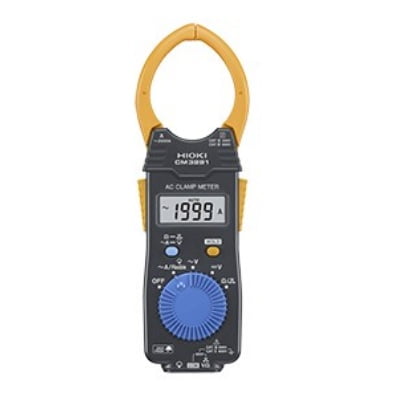

Jual Tang Ampere AC Clamp Meter Hioki CM3281, Hioki tang ampere adalah alat ukur terbaik di kelasnya yang menggabungkan keahlian Hioki dalam teknologi penginderaan arus. CM3281 adalah Tang Ampere AC 2000 A yang rata-rata diperbaiki dan memiliki rentang suhu pengoperasian yang luas dari -25°C hingga 65°C, inti penjepit yang tipis dan ringkas, serta sensor arus fleksibel opsional yang dapat Anda pasang agar Anda dapat masuk ke tempat yang paling sempit .
Fitur :
- AC only, measure up to 2000 AAC
- -25 °C to 65 °C operating temperature range
- Also measure resistance, continuity, AC and DC voltage
Spesifikasi :
- AC Current range 42.00 to 2000 A, 3 ranges (50 Hz to 60 Hz, Average rectified),
- Basic accuracy 50-60 Hz: ±1.5% rdg. ±5 dgt.
- DC Voltage range 420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. (at 4.2 V range)
- AC Voltage range 4.200 V to 600 V, 4 ranges (45 to 500 Hz, Average rectified),
- Basic accuracy 45-66 Hz: ±1.8% rdg. ±7 dgt. (at 4.2 V range)
- Resistance range 420.0 Ω to 42.00 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. (at 420 Ω range)
- Other functions Continuity check: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
- Power supply Coin type lithium battery (CR2032) ×1, Continuous use 120 hours
- Core jaw diameter φ 46 mm (1.81 in), Jaw dimension: 65 mm (2.56 in) W × 13 mm (0.51 in) D
- Dimensions and mass 57 mm (2.24 in) W × 198 mm (7.80 in) H × 16 mm (0.63 in) D, 103 g (3.6 oz)
