Description

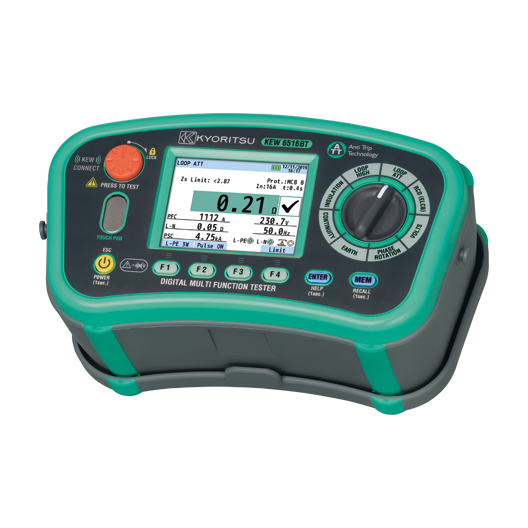

Jual Multi Function Installation Tester Kyoritsu 6516BT, Designed for electrical installation professionals, the tester with Bluetooth provides the tests required to verify the safety of commercial, industrial, and residential low-voltage electrical installations. Features continuous testing that can be carried out by use of the test button lockdown as well as three selectable test voltages: 250, 500, and 1000 V.
Fitur Multi Function Installation Tester Kyoritsu 6516BT:
- Color LCD 3.5″ dot matrix
- Anti-trip technology (with 2 and 3 wire) for no trip LOOP L-PE testing on all RCDs
- With 2 wires only, very useful in case of no neutral (i.e. three-phase motor lines)
- High test current range of 2 Ω with 0.001 Ω resolution
- Zs Limit compares the values required by electrical installations standard with measured results
- Type AC, A, F, B (General and Selective), EV and Variable RCDs
- Single and auto test, ramp test and contact voltage
- Earth resistance test 2 and 3 wires with all accessories included
- Resistance test 100, 250, 500, and 1000 V with auto discharge voltage
- Continuity test at 200 mA or 15 mA with selectable buzzer for fast judgment
- On 3-phase lines with clear indication of the sequence on the display
- TRMS Voltage measurements 2 to 600 V, mains frequency
- Display shows how to connect the instrument according to the function selected
- Surge protection device test, for SPD that uses varistor
- Portable appliance tester function, for insulation and protective conductor resistance test
- Bluetooth – communication by “KEW CONNECT”
- IEC 61010-1 CAT IV 300 V, CAT III 600 V. IEC 61557-1, 2, 3, 4, 5, 6, 7, 10
- Large LCD and HELP function
