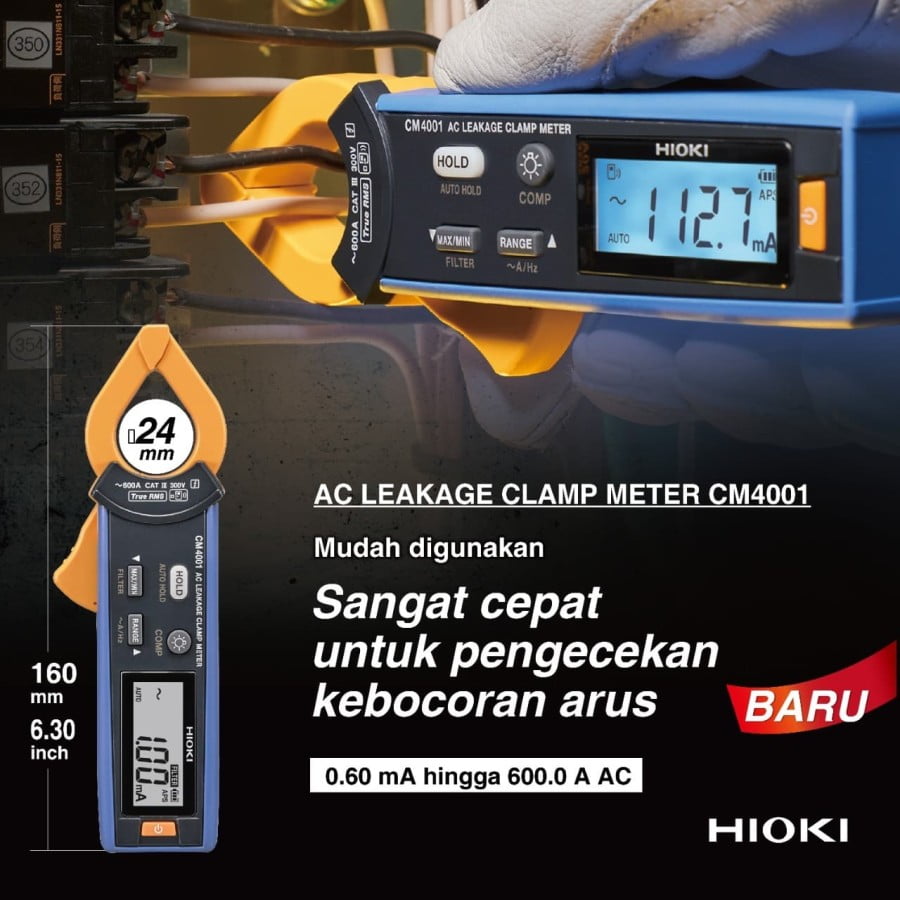

Tang Ampere AC Leakage Clamp Meter True RMS 600A Hioki CM4001

Description

Deskripsi Produk Tang Ampere AC Leakage Clamp Meter True RMS 600A Hioki CM4001

Tang Ampere AC Leakage Clamp Meter True RMS 600A Hioki CM4001

Spesifikasi :

• AC Current range 60.00 mA/ 600.0 mA/ 6.000 A/ 60.00 A/ 600.0 A, 5 ranges (40 Hz to 1 kHz, True RMS)
• Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt (60.00 mA to 6.000 A), ±2.5% rdg ±5 dgt (60.00 A to 600.0 A)
• Guaranteed accuracy: from 0.60 mA to 600.0A
• AC Voltage range N/A
• Frequency range 40.0 Hz to 999.9 Hz
• Crest factor 4.5 (4000 counts or less)
• 3 (more than 4000 counts, 6000 counts or less)
• Filter function Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)
• Output function N/A
• Other functions Comparator function, record Max/Min/Avg value, backlight, data hold, auto power off, AC inrush function
• Display Display refresh rate: 5 times/s
• Power supply LR03 alkaline battery × 1; 32 hours of continuous use
• Core jaw diameter φ 24 mm (0.94 in)
• Dimensions and mass 37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D, 115 g (4.1 oz.)
